Indoor Solid Sealed Vacuum Circuit Breaker

As the professional manufacture, we would like to provide you Timetric Indoor Solid Sealed Vacuum Circuit Breaker. And we will offer you the best after-sale service and timely delivery. With high-quality products, good reputation and high-quality service, the products sell well in Europe, America, Southeast Asia, the Middle East and other markets. We sincerely cooperate with customers and merchants for win-win, common development and common progress.

Send Inquiry    PDF DownLoad

Product Description

Timetric Indoor Solid Sealed Vacuum Circuit Breaker Introduction

Indoor Solid Sealed Vacuum Circuit Breaker is a three-phase AC 50Hz, rated voltage of 12kV indoor switching equipment, can be used for industrial and mining enterprises, power plants and substations, electrical facilities for control and protection, and suitable for frequent operation places. Using the integration of the operating mechanism and the circuit breaker body, the design can be used as a fixed installation unit, but also can be equipped with a special propulsion mechanism, to form a handcart unit for use. The main loop part can be used as a whole solid sealing pole, in order to achieve the circuit breaker miniaturization, high reliability, maintenance-free, can be used with KYN28A-12(GZS) and other middle mobile switchgear, fixed type can also be used for XGN series fixed type switchgear.

Timetric Indoor Solid Sealed Vacuum Circuit Breaker Parameter (Specification)

Name

Unit

Parameter

Rated voltage

kV

12

12

12

12

Operating current

A

630、1250

630、1250、1600

1250、1600

2000、2500、3150

Rated insulation level

1min power frequency withstand voltage

kV

42

42

42

42

Lightning impulse voltage

kV

75

75

75

75

Rated short-circuit breaking current

kA

20

25

31.5

40

Rated short-circuit making current (peak value)

kA

50

63

80

100

Rated (peak) withstand current

kA

50

63

80

100

Rated short-time withstand current

kA

20

25

31.5

40

Rated short-circuit breaking current breaking times

50

50

50

30

Rated short circuit duration

s

4

Rated operating sequence



Opening - 0.3 s - closing opening - 180 s - closing opening

Opening - 180s - closing opening - 180s - closing opening (40kA)

Mechanical life

20000

20000

20000

20000

Timetric Indoor Solid Sealed Vacuum Circuit Breaker The user shall indicate:

a. Model, name and order quantity of circuit breaker;
b. Rated voltage, rated current and rated short-circuit breaking current of the circuit breaker;
c. Rated operating voltage of energy storage motor and opening/closing coil;
d. Number of over-current tripping coils and tripping current value;
e. Name and quantity of spare parts; f. Please contact the manufacturer in case of any ambiguity or special requirements.

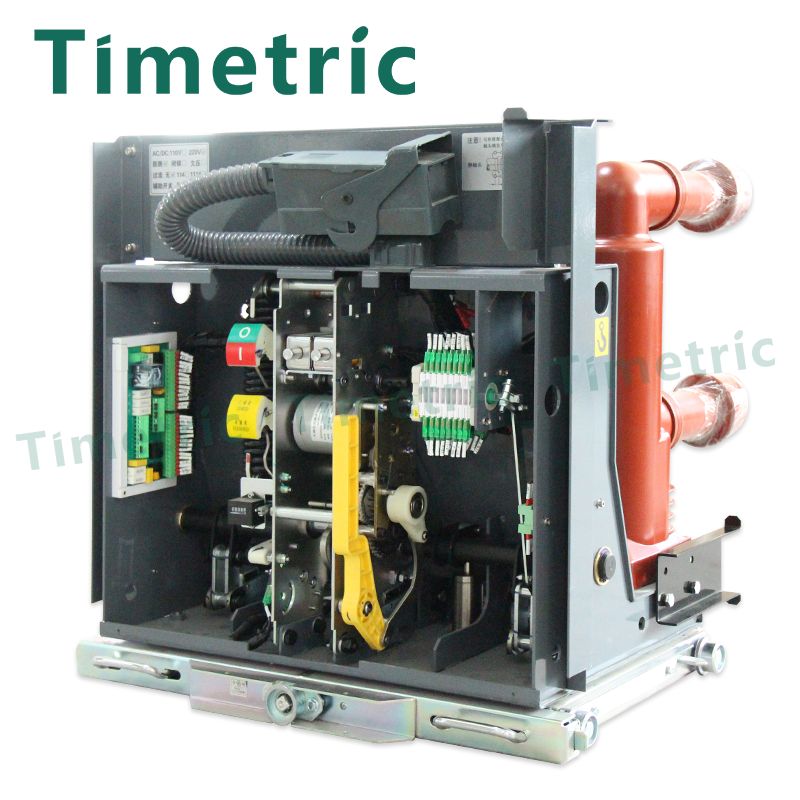

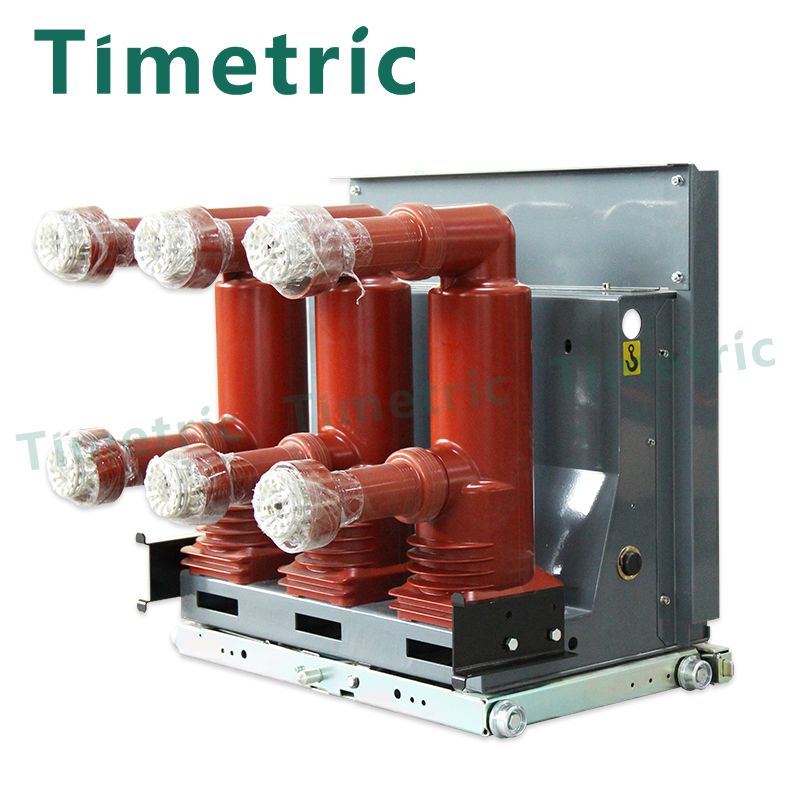

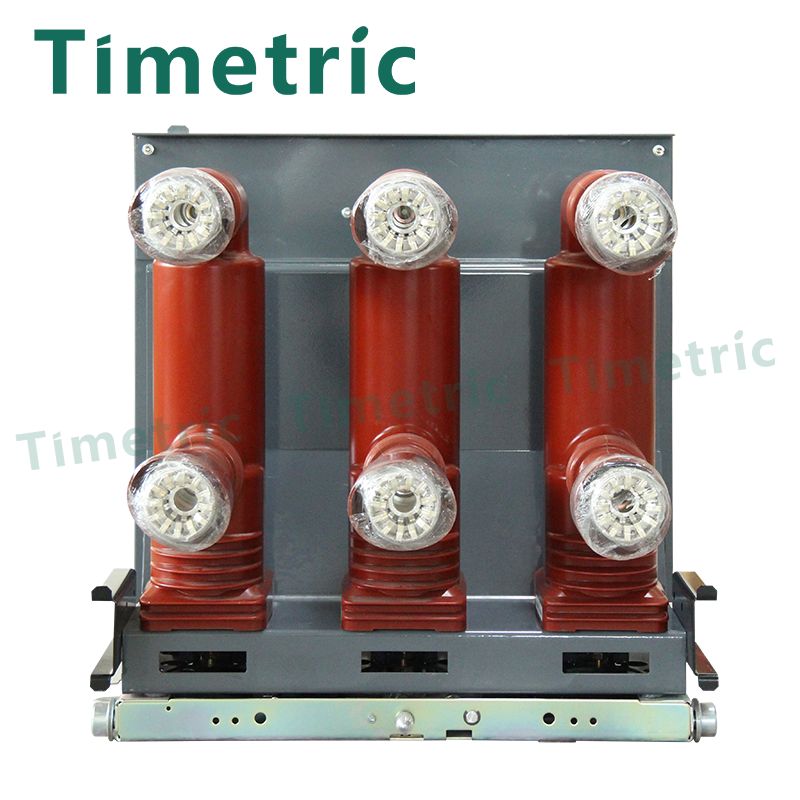

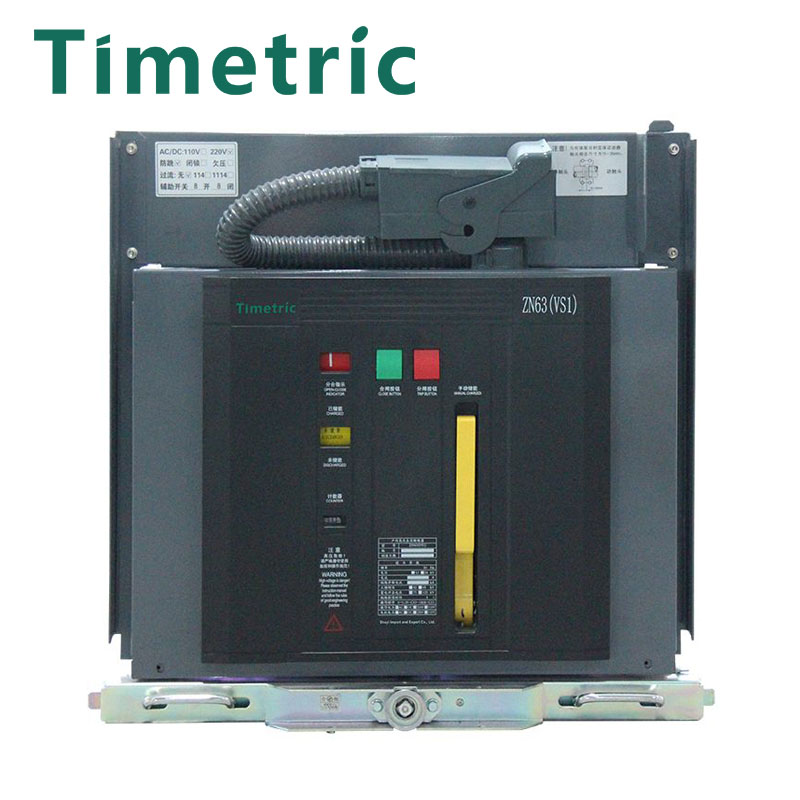

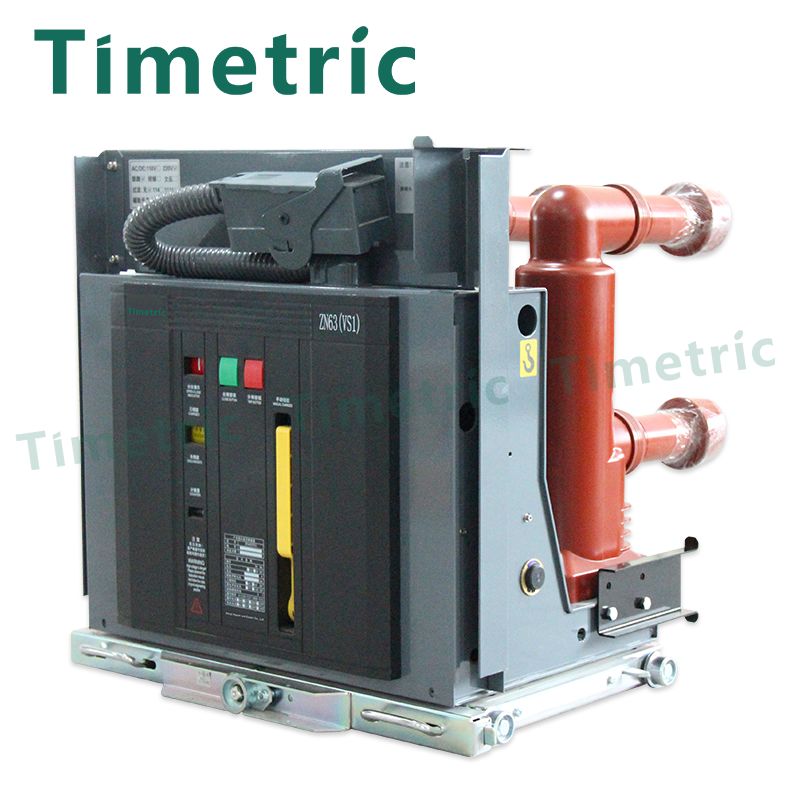

Timetric Indoor Solid Sealed Vacuum Circuit Breaker Details
