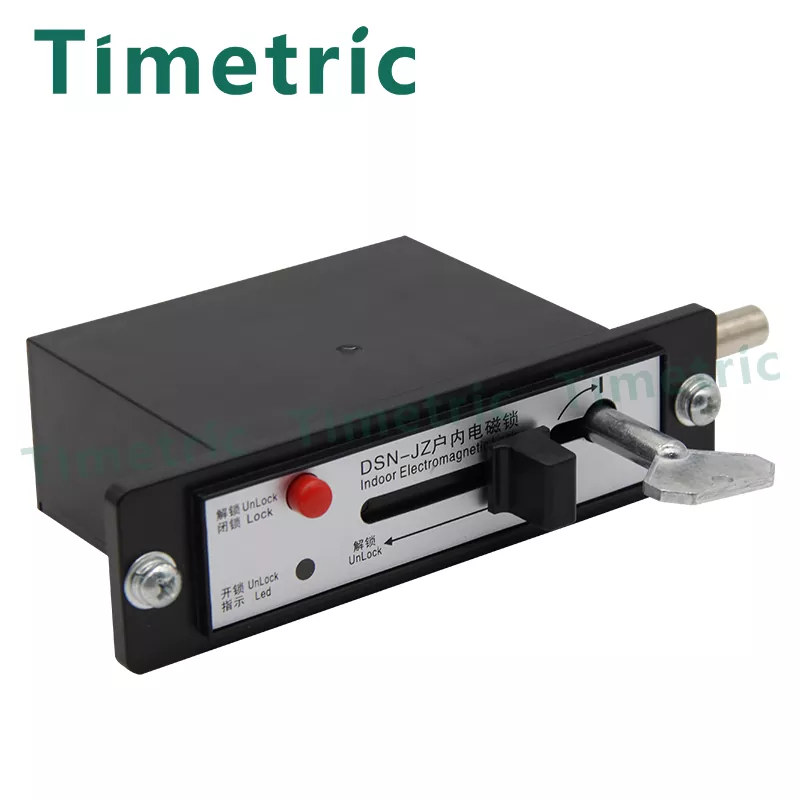

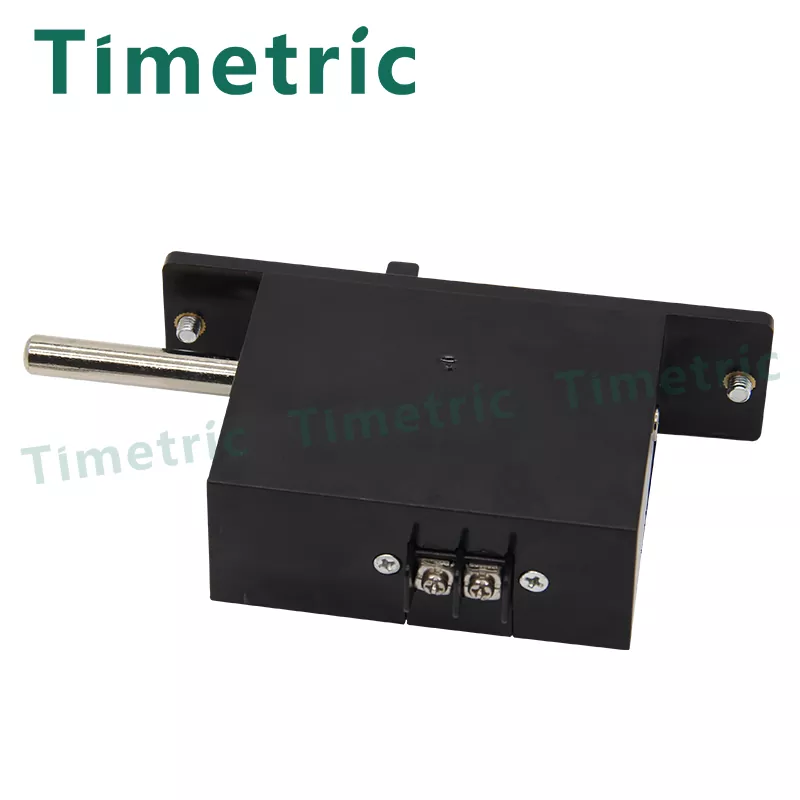

Indoor DSN 48V Switchgear Lock

Features of Indoor DSN 48V Switchgear Lock The indoor electromagnetic lock is an interlocking device for electronic control mechanisms to prevent misoperation of high-voltage switchgear appliances. It is mainly suitable for the front and rear cabinet doors of indoor high-voltage switchgear, isolating switches, circuit breakers, grounding wires and other parts that need to be locked to achieve interlocking to prevent misoperation. You can rest assured to buy Indoor DSN 48V Switchgear Lock from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

Indoor Medium Voltage Switchgear - Indoor Electromagnetic Lock

Installation Process

Remove the M5 nut, spring washer, and flat washer from the panel mounting screw.
Insert the lock body's bolt side through the cabinet door opening from the outside. Rotate the lock body to align the mounting screw with the 60mm hole on the cabinet door, ensuring a flush and level fit between the lock and cabinet door panels.
Inside the cabinet door, assemble the flat washer, spring washer, and M5 nut onto the lock panel's M5 screw. Tighten the M5 nut securely.

Usage Instructions

(1) Normal Operation

a. Press the button to activate the power. This separates the moving iron core from the lock bolt stopper using the electromagnet coil. The unlock indicator light illuminates, signifying readiness to unlock.

b. Unlock the cabinet door by turning the handle in the unlocking direction (clockwise for left open, counterclockwise for right open). As the handle reaches its limit position and you continue to exert force, the lock bolt automatically returns to the locked position, enabling the cabinet door to open. If the lock bolt isn't in the unlocked position, it will automatically return to the locked position (auto reset). If the lock bolt is already locked, manually turn the handle to ensure proper locking.

Note: Both A and B locks share identical appearance and installation dimensions.

(2) Operation Method

A. Utilize the dial button. B. Pull the handle.

(3) Manual Unlocking

a. Press the button to deactivate the power, turning off the unlocking light. The moving iron core adheres to the lock bolt stopper, indicating no unlocking allowed.

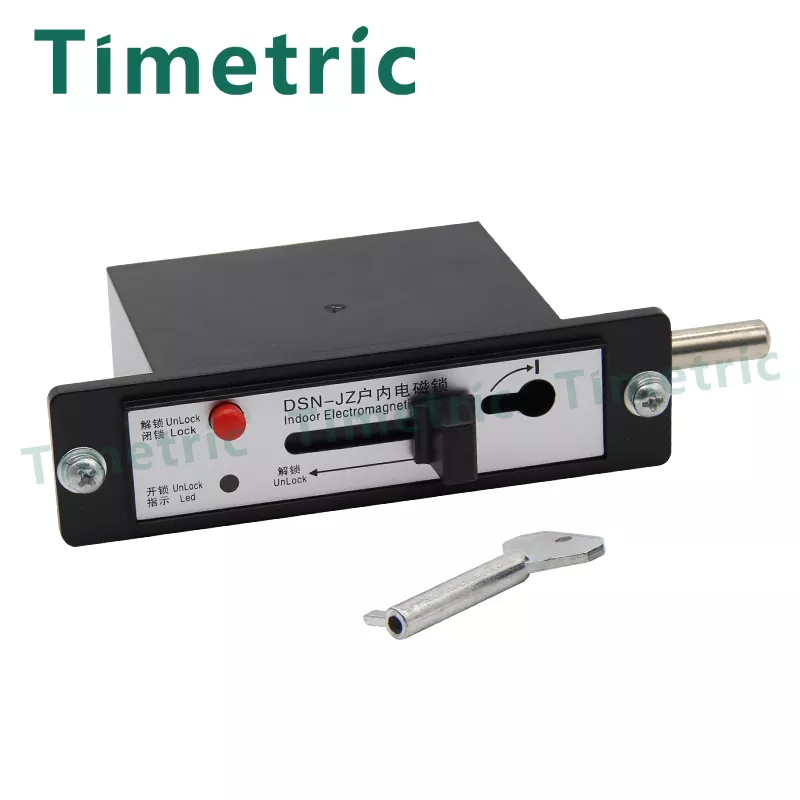

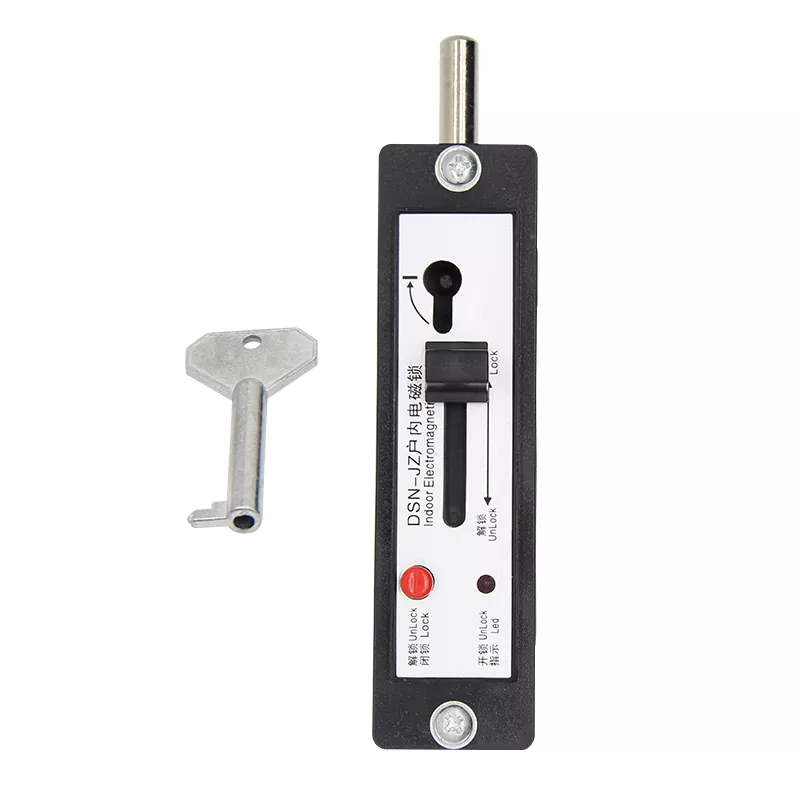

b. In special unlocking scenarios, use the unlocking key in the designated hole. Rotate the key 90° to the "-" (stop position) marked on the panel. Push the moving iron core away from the lock stopper.

c. Follow the same steps as normal operation (step b) to achieve "manual unlock."

Note: The unlocking key releases the locked state by pushing the moving iron core. Full unlocking requires using the dial or handle, as the key alone cannot directly unlock the lock.

Relevant Specifications:

Operational Voltage: AC/DC 220V, 110V
Auxiliary Contact: Current ≤ 3A Current ≤ 6A (when circuit breaker is locked)
Operating Environment: a. Temperature: Ranges from a maximum of +40°C to a minimum of -25°C to -10°C. b. Humidity: Daily average not exceeding 95% Monthly average not surpassing 90% c. Ambient Air Temperature: General areas range from a maximum of +40°C to a minimum of -10°C. Alpine areas experience a minimum of -25°C. d. Altitude: Installation area altitude not exceeding 1000m. e. Environmental Humidity: Daily average relative humidity does not surpass 95%, while monthly average remains below 90%. f. Environmental Conditions: No significant pollution, no presence of flammable, explosive, chemically corrosive substances, or salt spray. Additionally, there should be no frequent intense vibrations.As the professional manufacture, we would like to provide you Indoor DSN 48V Switchgear Lock. And we will offer you the best after-sale service and timely delivery.
