AC Three Phase Combination Electric Meter
Timetrim is a high-tech enterprise that integrates research and development, manufacturing, and sales of 7.2KV to 40.5KV switch cabinets and their components, such as AC Three Phase Combination Electric Meter ， high and low voltage switch control cabinets, grounding switches, interlocking devices, insulators, chassis vehicles, vacuum circuit breakers, etc.Timetric focuses on scientific and technological investment and talent cultivation, introducing internationally advanced sheet metal flexible production lines, CNC laser cutting equipment, and robotic automatic welding equipment, to maximize customer production and technical requirements for non-standard products.We look forward to becoming your long-term partner in China.
Send Inquiry
Product Description

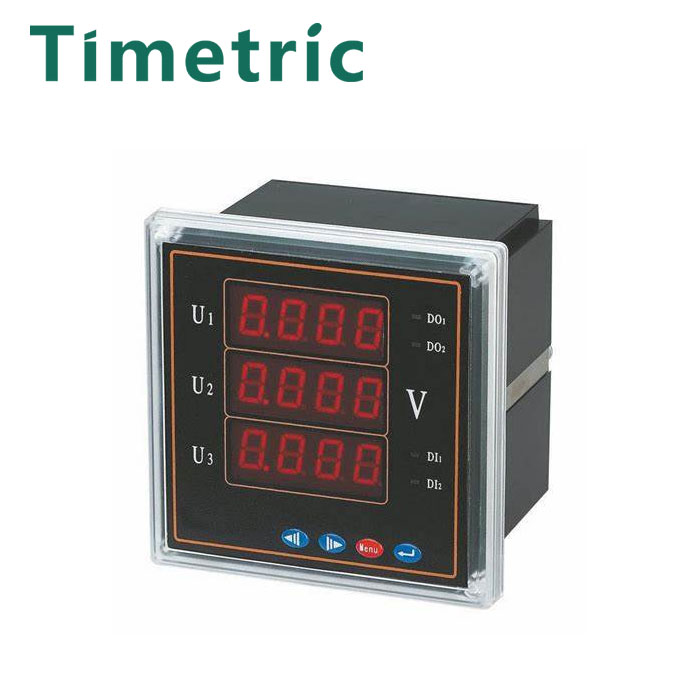

Timetric AC Three Phase Combination Electric Meter Introduction
AC Three Phase Combination Electric Meter is a generic term for electrical instruments used to measure voltage, current, etc. Three-phase meters are generally used in places where current is used, such as factories, government buildings, villas, shops, etc. The demand for electricity is relatively large, so three-phase meters are the best choice, three-phase meters can also be used with transformers, so the three-phase meter with transformers is no current maximum, how much current, as long as the transformer ratio is enough are available.
Timetric AC Three Phase Combination Electric Meter Parameter (Specification)
|
Accuracy Class |
Voltage:0.2, Current:0.2, Frequency:0.05Hz, Power factor:0.5 |
|
|
Active power:0.5, Reactive power:0.5, Appearent power:0.5 |
||
|
Active energy: 0.5/1, Reactive energy: 2 |
||
|
Input |
Rated Value |
Voltage: 100/400V; Current: 1A/5A |
|
Overload |
Voltage: Sustained Overload: 1.2 times of the rated value Momentary Overload: 2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 10 times of the rated value |
|
|
Frequency |
45-60Hz |
|
|
Functional Module |
Pulse output |
1 |
|
Interface |
1* RS485; Modbus RTU communication protocol; Baud rate: 1200-19200bps |
|
|
DI |
4 |
|
|
DO |
2-4 (AC250/5A, DC30V/5A) |
|
|
Power Supply |
Working Range |
AC: 85-265V; DC: 85-300V |
|
Consumption |
< 3W |
|
|
Working Condition |
Temperature |
Operating: -20℃~+70℃ Storage: -40℃~+80℃ |
|
Humidity |
Relative Humidity: <93% (place without corrosive gas) |
|
|
Altitude |
0 to 4000m |
|
|
Size |
96×96mm (hole Size 91*91mm) |
|
|
Installation |
Panel installation |
|
Timetric AC Three Phase Combination Electric Meter Feature And Application
Features:
• Monitoring up to 9 three-phase channels or 27 single-phase channels and measuring all parameters: three phase voltage, current,
line voltage, zero-sequence current , zero-sequence voltage, active power, reactive power, power factor, frequency, active energy,
reactive energy from 9 circuits.
• Standard CT, PT or voltage direct connected, suitable for various wiring modes under high or low pressure environment
• 2* RS485/Lora LoraWan (optional) • Modbus RTU communication protocol, DL/T645 (optional)
• 4 DI
• 2 DO (optional)
• 2* programmable energy pulse output
• LCD display
Function
• Measuring real-time DC voltage, current, power, import energy, export energy
• Cumulative energy of each month in the last 12 months independent
• Load record storage space to ensure that the record of import power, the time of 60 minutes can record no less than 40 days of data capacity
• 1* RS485, Modbus RTU communication protocol
• 1* programmable energy pulse output
• LCD display
Timetric AC Three Phase Combination Electric Meter Details
