JN15-12kV Indoor 150mm Phase Spacing Earthing Switch

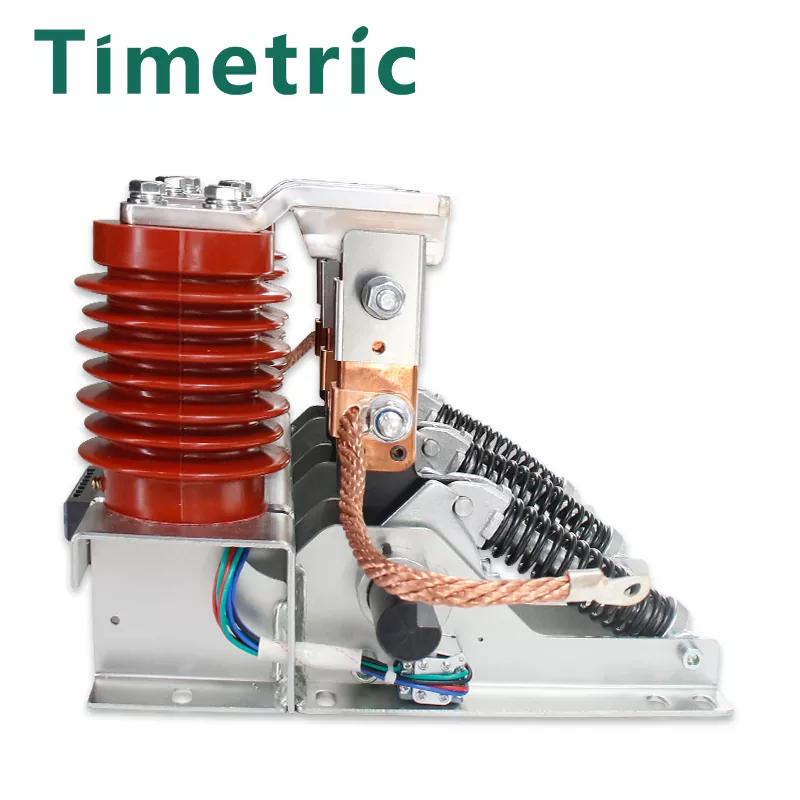

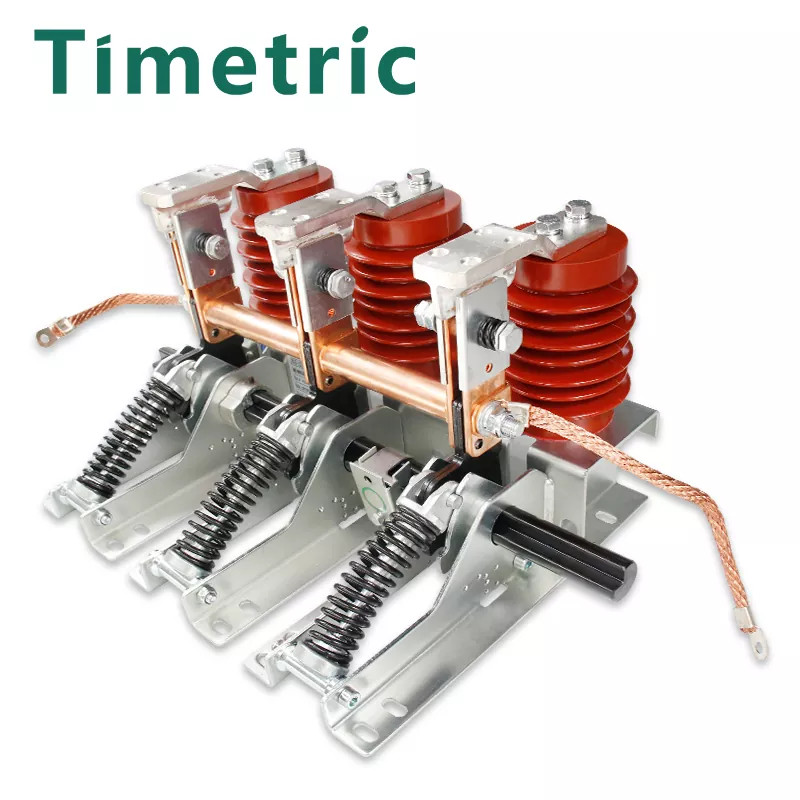

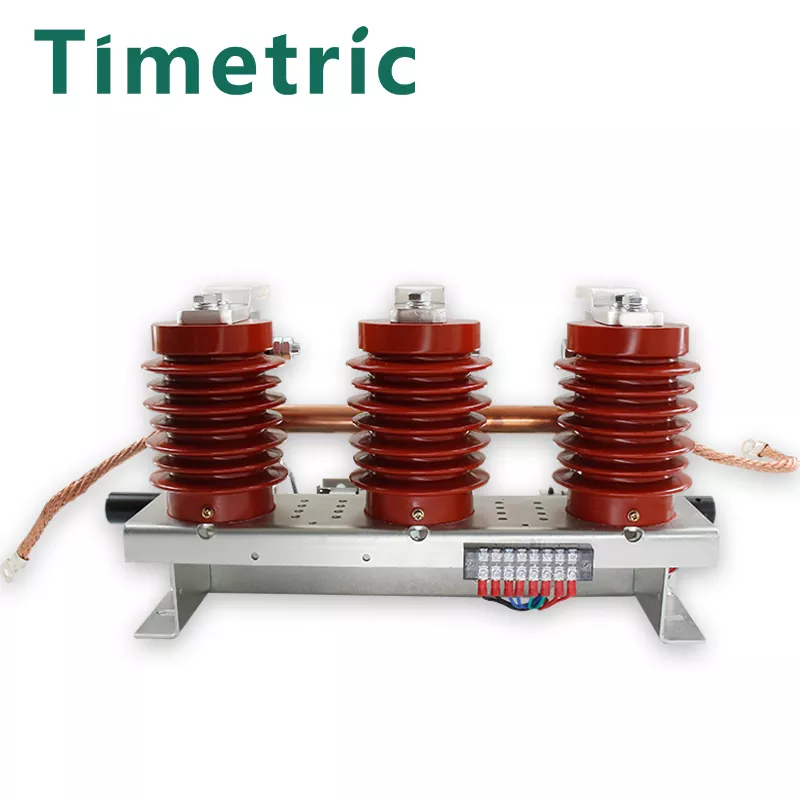

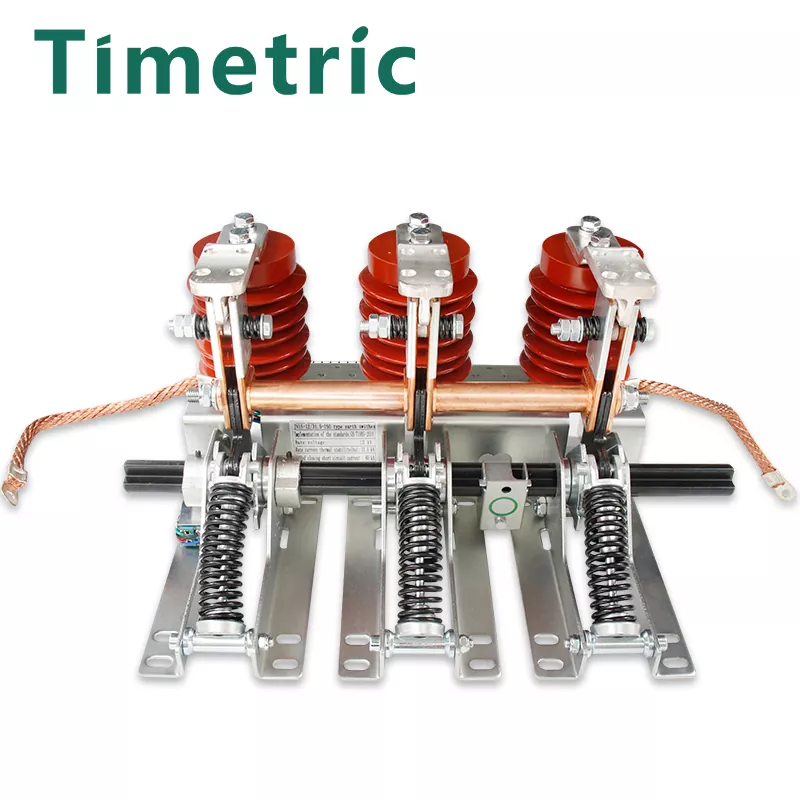

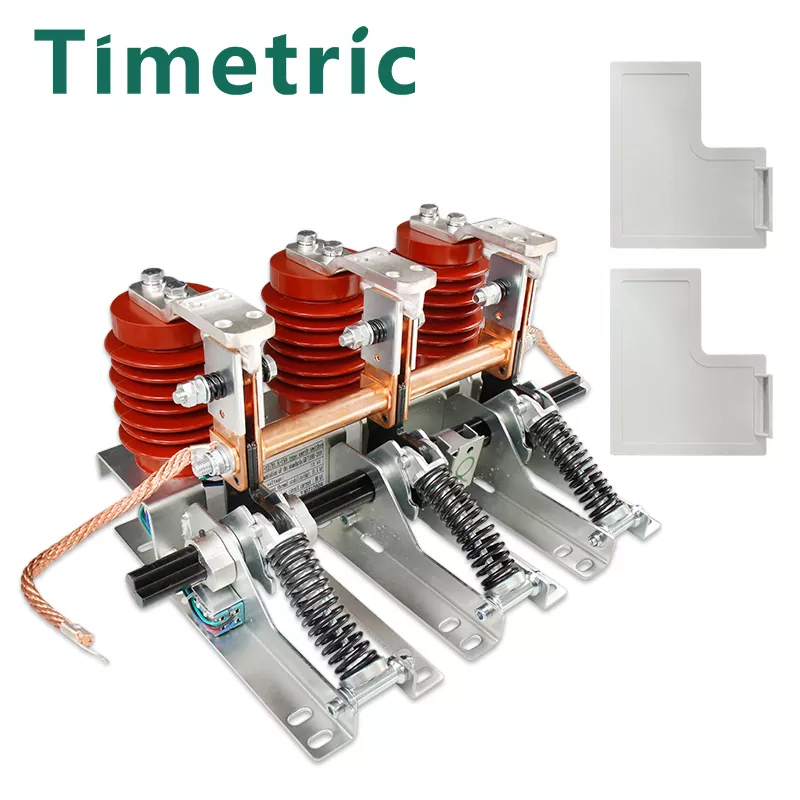

The JN15-12kV Indoor 150mm Phase Spacing Earthing Switch produced by Timetric Electric consists of a bracket, grounding knife assembly, static contact, and sensor. The bracket is welded from thin steel plates. Its operating principle is that the operating mechanism drives the main shaft to rotate, utilizing the energy stored in the compression spring to achieve rapid opening and closing operations. When closing, the grounding knife and static contact are reliably contacted via the spring. The product features a compact structure, lightweight, flexible operation, easy installation, and strong dynamic thermal stability. Its opening and closing speed is unaffected by manual operation speed. When the operating mechanism closes the grounding switch, the torque acting as the main shaft overcomes the resistance torque, driving the crank arm to rotate in the closing direction. This causes the operating lever on the grounding knife to pass the dead point of the compression spring, releasing energy and rapidly closing the grounding switch. The grounding knife assembly's grounding knife is firmly and reliably contacted with the flange of the static contact via the compression spring. During the opening operation, the applied torque causes the main shaft to overcome the main torque and spring force, driving the crank arm to rotate in the opening direction. This causes the grounding knife compression spring to pass through the dead point, completing the energy storage process and preparing for the next closing. The grounding switch and closing speed are independent of the operator's operating speed.

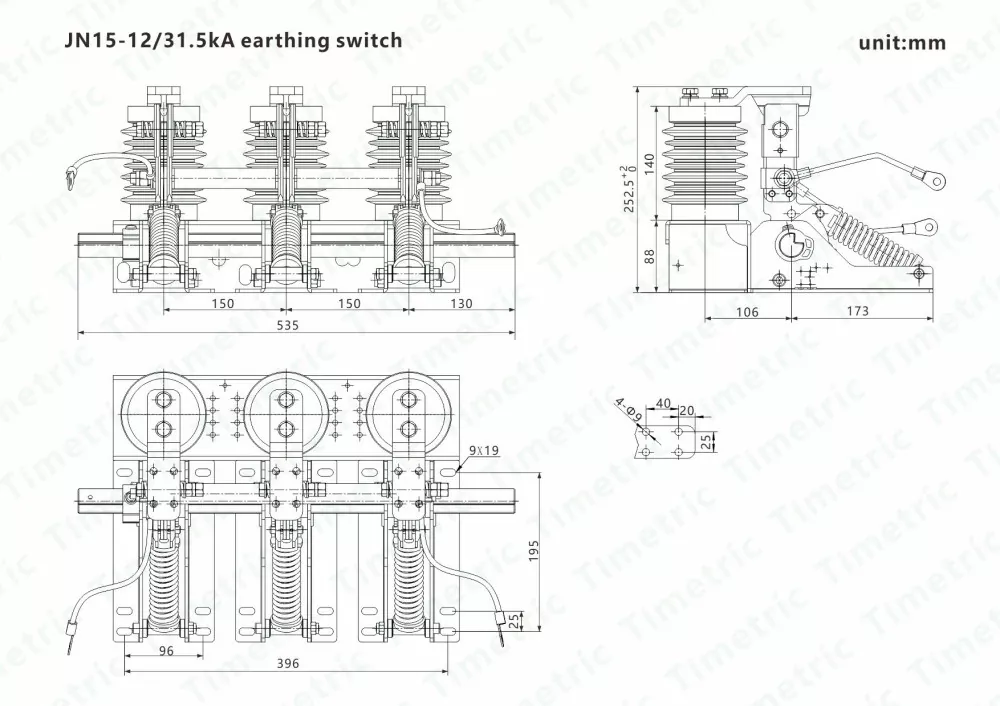

Main Technical Parameters

Order notes:Indicate product specification,central distance between poles,if the electric display device(type ot me display)needed or not please note the soft link length when ordering (normal L=250mm).Please consult with us if you have any special request.

Circuit Diagram

Working Environment：

JN15-12kV Indoor 150mm Phase Spacing Earthing Switch: Environmental Suitability and Requirements

a. Altitude not exceeding 1000 meters.

b. Ambient temperature not exceeding +40°C and not falling below -10°C.

c. Daily average relative humidity not exceeding 95%, monthly average not exceeding 90%.

d. Earthquake intensity not exceeding 8.

2. Not suitable for the following locations:

a. Installation location exposed to gases, vapors, chemical precipitation, smoke, dust, dirt, or explosive and corrosive substances that could seriously affect the insulation and conductivity of the grounding switch.

b. Installation location subject to frequent and severe vibration.

Advantages of the JN15-12kV Indoor 150mm Phase Spacing Earthing Switch

Key Advantages of JN15-12kV Indoor 150mm Phase Spacing Earthing Switch：

The product adopts a modular design, comprising core components such as the chassis, flexible connector, post insulator, static contact, and moving contact blade. Rapid closing and opening are achieved through an operating panel and energy storage springs. Compact and lightweight, it offers excellent dynamic thermal stability and is easy to install and commission. Optional live display devices and auxiliary switches are available to adapt to different operating conditions.

FAQ

Can your company customize products according to my requirements?

Yes, we can customize products according to customer requirements. Generally speaking, customers only need to provide: disconnect switch model, voltage, current, use environment, etc.

What is your fastest delivery time?

Usually we will accept the customer's inquiry, communicate and confirm the specific parameters of the disconnector. The actual production time is determined according to the purchase quantity.

How is your after-sales service?

We support a 1-year warranty. The normal quotation does not include on-site after-sales service. Free online communication and guidance are available.
