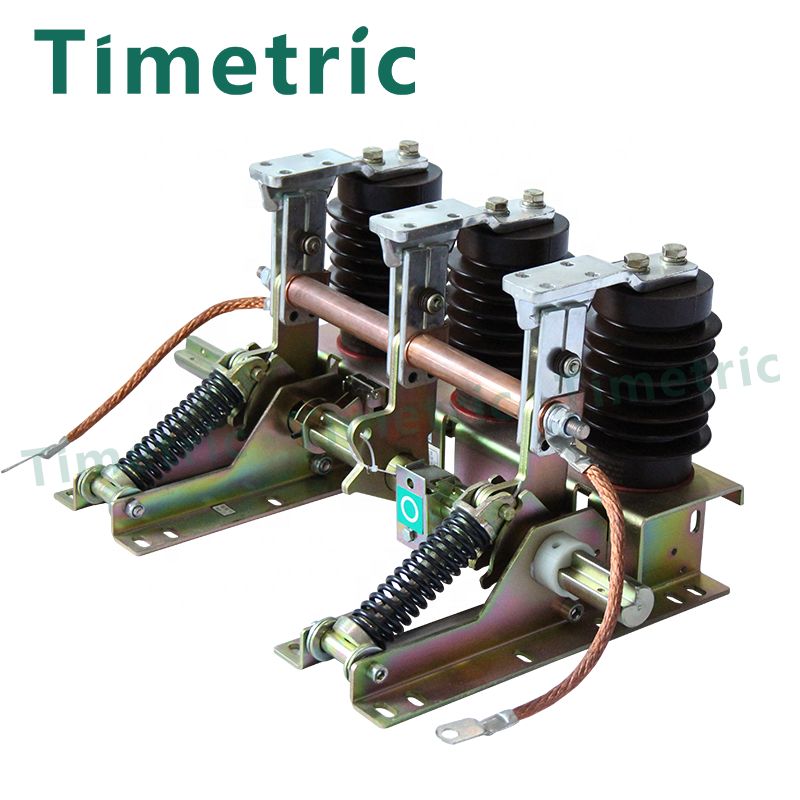

24kv Earthing Switch
  • 24kv Earthing Switch24kv Earthing Switch

24kv Earthing Switch

Timetric Electrical is a reputable manufacturer and supplier of 24kv Earthing Switch with extensive experience in producing high-quality high voltage equipment for clients worldwide. We take pride in offering competitive prices and delivering products that meet the highest industry standards. Our distribution network covers various markets in South America, the Middle East, Africa, and Southeast Asia. We are committed to building long-term business relationships and would be delighted to serve you.

Send Inquiry

Product Description

Timetric 24kv Earthing Switch Introduction

JN15-24/31.5 indoor AC high voltage earthing switch is an advanced level product with high-tech parameters performance. After comprehensive evaluation, it conforms to GB1985 and IEC62271, applies to power system of 24kV and three-phase AC 50Hz. It owns short-circuit making capacity to protect other electric equipment not being damaged. Can be used with various high voltage switchgearalso play a protective role in the high-voltage electrical equipment overhaul.

Timetric 24kv Earthing Switch Parameter (Specification)

Model NO.

JN15-24KV-210MM

Voltage

24kv

Frequency

50Hz

Phase Distance

150mm/210mm/275mm

Rated Short-Time Withstand Current

31.5ka

Altitude

Not Higher Than 1000m

Transport Package

Standard Export Shipping Package

Origin

Zhejiang, China

Timetric 24kv Earthing Switch Feature And Application

Application:

Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Over current Protection, OVP(Over voltage Protection)

Ambient condition:

1.Altitude: ≤1000m

2.Ambient temperature: -10°C ~+40°C

3.Earthquake intensity: ≤8 degree

4.Pollution level: II

5.Relative humidity: Daily averages95%,Monthly average≤90%

Timetric 24kv Earthing Switch  Details
