High Voltage Isolation Switch
  • High Voltage Isolation SwitchHigh Voltage Isolation Switch

High Voltage Isolation Switch

Timetric electrical is a large-scale High Voltage Isolation Switch manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. We place a strong emphasis on standardized, systematic, and streamlined production processes, with a full range of quality management strategies in place to ensure top-notch product quality. Every step of the production process is subject to rigorous quality inspection and tracking, leaving no room for error.Our products have a good price advantage and cover most of the South America, Middle East, Africa, Southeast Asia markets. We are committed to establishing long-term partnerships with our clients in China and beyond.

Send Inquiry

Product Description

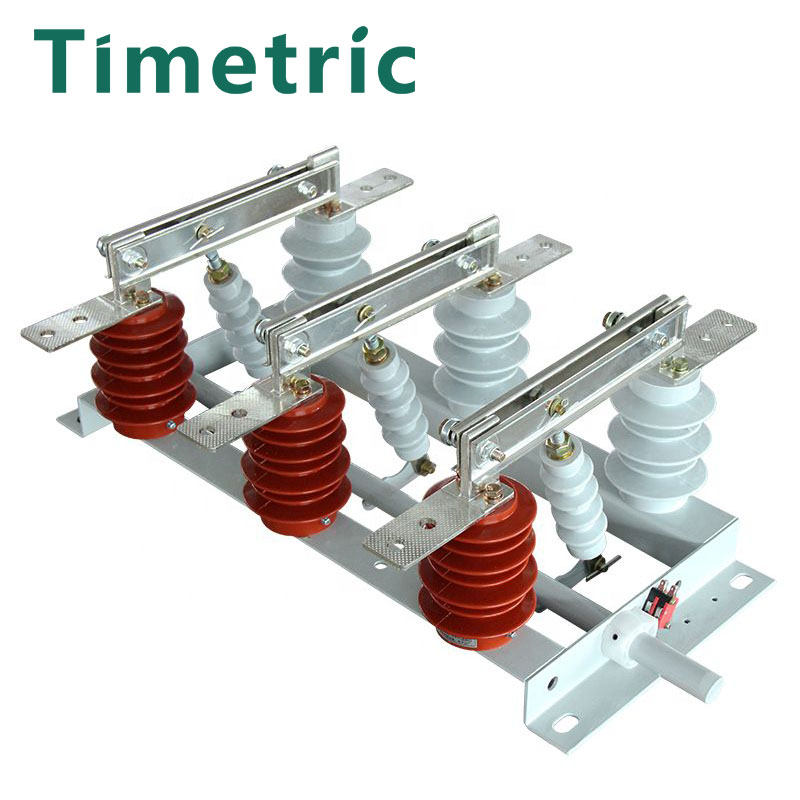

Timetric High Voltage Isolation Switch  Introduction

High voltage isolation switches are important switching devices in the electrical systems of power plants and substations, which need to be used in conjunction with high-voltage circuit breakers. The isolation switch is suitable for indoor devices with three-phase AC 50Hz and rated voltage of 12KV. Used to connect, cut off, or convert circuits of high-voltage equipment under voltage and load conditions. Its main function is to ensure the safety of high-voltage electrical appliances and devices during maintenance work, and to isolate voltage. It cannot be used to cut off, input load current, or break short-circuit current. It can only be used for certain switching operations that do not generate strong arcs, which means it does not have arc extinguishing function; According to different installation locations, it can be divided into indoor and outdoor types. According to the number of insulation pillars, it can be divided into single column, double column, and three column types. Each voltage level has optional equipment.

Timetric High Voltage Isolation Switch Parameter (Specification)

Model NO.





ISO, IS9001, ISO9001

Product Name

High Voltage Isolation Switch

Related Voltage

up to 12kv

Rated Frequency


Rated Current

up to 3150A






Standard or Customization

Transport Package

Wooden Case


Zhejiang, China

HS Code


Timetric High Voltage Isolation Switch Feature And Application

1. Scientific design and innovative structure

2. Contacting points distribute on two planes, small operating moment, and release pressure to small and easy adjustment

3. Improved driving and conducting part

4. Column moving contact that can decrease operating strength and ensure reliability of circuit conduction

Timetric High Voltage Isolation Switch  Details
