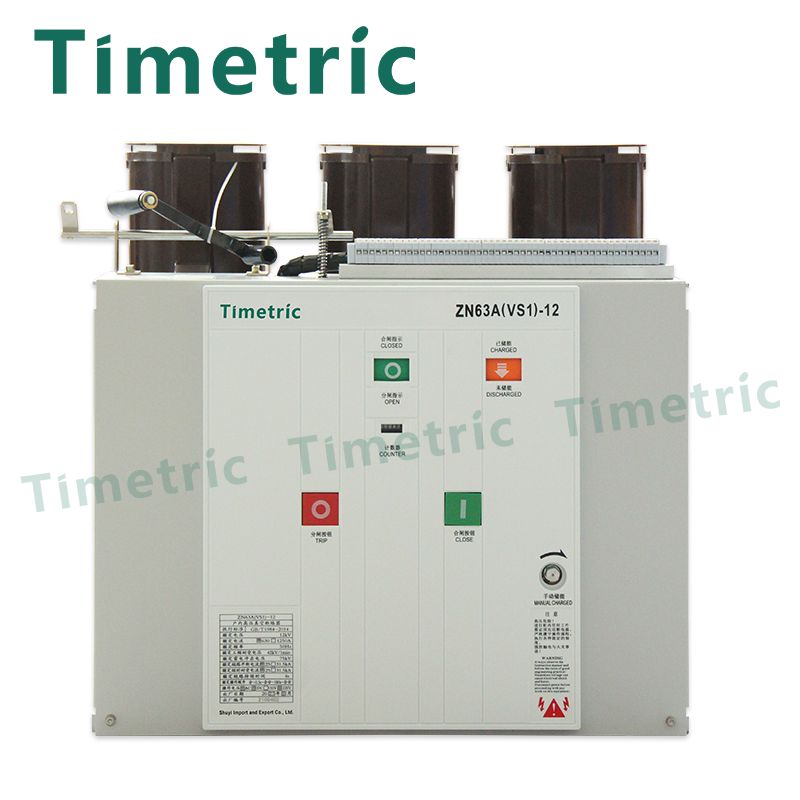

11 KV Indoor Vacuum Circuit Breaker

As the professional manufacture, we would like to provide you high quality Timetric 11 KV Indoor Vacuum Circuit Breaker. And we will offer you the best after-sale service and timely delivery. Wenzhou Shuyi Import and Export Co., Ltd. regards quality as the life of the enterprise, strictly manages quality and actively participates in market competition, with remarkable performance, receiving support from domestic customers, while actively exploring the international market, exporting products to the Philippines, Pakistan, Australia, New Zealand, Venezuela, India, Japan, the Netherlands, the United States and other countries, the quality of products has been widely praised and has left a good impression on customers.

Send Inquiry    PDF DownLoad

Product Description

Timetric 11 KV Indoor Vacuum Circuit Breaker Introduction

The vacuum circuit breaker can be divided into two types: fixed type and car type. The overall structure adopts the form of operating mechanism and arc extinguishing chamber before and after arrangement. The main circuit part is three-phase floor type structure. Therefore, it can especially creepage and reduce the accumulation of dust on the surface of the arc extinguishing chamber. It can not only prevent the vacuum arc extinguishing chamber from being affected by external factors, but also ensure that the voltage effect can show a high resistance state even in the humid heat and serious dirty environment.

Timetric 11 KV Indoor Vacuum Circuit Breaker Parameter (Specification)

Item

Description

Unit

Data

1

Rated voltage

KV

12

2

Max. voltage

KV

12

3

Rated current

A

630/1250/2000A4000

4

Rated short circuit breaking current

KA

20/25/31.5/40

5

Rated short circuit making current

KA

50/63/80/100

6

Rated peak withstand current

KA

50/63/80/100

7

4S Rated withstand current

KA

20/25/31.5/40

8

Rated insulation level

Power frequency voltage(when losing a circuit)





KV

Dreaker 42

Impulse withstand voltage(when losing a circuit)

Dreaker 75

9

Rated operating sequence



OC-0.3s-CO-180S-CO

10

Mechanical life

Times

20000

11

Rated short circuit current breaking time

Times

50

12

Rated close brake voltage of operating machnie

V

110,220

13

Rated break brake voltage of operating machnie

V

110,220

14

Contact stroke

mm

11±1

15

Exceed range(the compress length of contact sping)

mm

3.5±0.5

16

Different period of three-phase break and close break

ms

≤2

17

The jump time of contact close break

ms

≤2

18

Average break speed

m/s

0.9~1.2

19

Average closing speed

m/s

0.5~0.8

20

Opening time

Ubder max.operating voltage



S

≤0.05

Under min.operating voltage

≤0.08

21

Closing time

s

0.1

22

Resistance of each phase main loop

μΩ

≤40

23

Contacts limit ersion

mm

3

Timetric 11 KV Indoor Vacuum Circuit Breaker Details

FAQ


Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.


Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.


Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
