Indoor RMU 10kV 24kV Gas Load Switch

Timetric Indoor RMU 10kV 24kV Gas Load Switch  Introduction

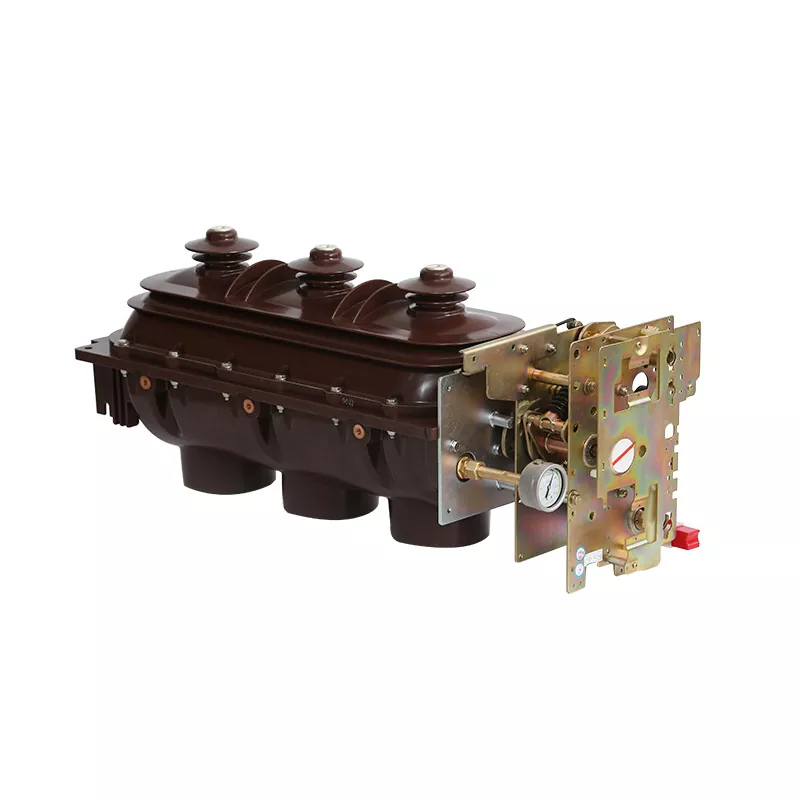

SF6 load switch is a kind of switching equipment with excellent performance, stable and reliable quality, which uses SF6 gas as insulation and arc extinguishing medium, and the switch body is placed in a casing cast by reinforced epoxy resin insulation material.

1. A new generation of ultra-high voltage insulating dielectric materials. As a good gas insulator, it is widely used in the gas insulation of electronic and electrical equipment.

2. It can be used in the smelting and casting process of non-ferrous metals, and can also be used in the degassing and purification of molten aluminum and its alloys. In the microelectronics industry, sulfur hexafluoride can be used to etch the silicon surface and remove organic or inorganic membranes on semiconductor materials, and can be used as a single-film fiber isolation layer dopant in the manufacturing process of optical fibers.

3. Mainly used for arc extinguishing in high-voltage switches, and used as insulating material in large-capacity transformers and high-voltage cables.

4. Used as a gas insulator for electronic equipment and radar waveguides.

5. Operating mechanism:

Its operating mechanism can be divided into K-type single spring mechanism and A-type double spring mechanism. There are also manual and electric.

6. FLRN36-24D is equipped with A-type mechanism, referred to as the outlet switch, which has a three-position interlock function. The main switch can be opened and closed manually or electrically, the main switch can be tripped by a button or a tripping device, and the grounding switch can be manually operated. Breaking or closing, with position indication and fuse blown indication, etc.

Electric operation: Equipped with a drive device and a control unit, it can realize the electric opening and closing operation of the load switch.

Timetric Indoor RMU 10kV 24kV Gas Load Switch (Specification)

Application: High Voltage Switchgear

Material: Epoxy Resin

Specifications: 12KV SF6 load break switch

Operating Conditions:Suitable for altitudes up to 1000 meters above sea level.Designed to operate within an ambient temperature range from +40°C to -10°C.The relative humidity should not exceed 95% at an ambient temperature of +20°C.

Timetric Indoor RMU 10kV 24kV Gas Load Switch Feature And Application

Picture the load breaker switch as a versatile medium voltage switchgear system, like a Swiss Army knife for electrical control. It seamlessly shifts between three essential modes: closed, open, and grounded, accommodating diverse operational requirements.

This switchgear represents the epitome of precision engineering, housed within a sturdy epoxy shell structure that's sealed tightly, akin to a secure vault. It's infused with SF6 gas, precisely maintained at 0.05Mpa pressure. SF6 gas serves as both a protector against electrical arcs and a reliable insulator. Additionally, epoxy resin meticulously envelops the main circuit through upper and lower shells, ensuring the switch's conductivity remains intact.

This ingenious design is all about efficiency, streamlining the number of components required to perform these critical functions. The outcome is a guarantee of impeccable product quality, heightened reliability, minimal maintenance demands, and a user-friendly and secure operation experience.
