Indoor medium voltage fuse style load switch

Introducing the Timetric Indoor Vacuum Load Break Switch: The FN7-12DR series AC high voltage load switch offered by Timetric is an innovative gas-type indoor load switch designed for use in AC power systems with a frequency of 50Hz and a rated voltage of 10KV. This switch serves the crucial functions of breaking load current and closing short-circuit current.

Environment Parameters: To ensure optimal performance, it is important to consider the environmental factors. The maximum ambient air temperature should not exceed 40℃. For general areas, the minimum ambient air temperature is 10℃, while for alpine regions, it is -25℃. The daily average relative humidity should be below 95% in areas below 2000m altitude, with the monthly average relative humidity below 90%. The ambient air should be free from noticeable pollution caused by corrosive or flammable gases and water vapor. Additionally, there should be no recurring severe vibrations.

Rest assured, the Timetric Indoor Vacuum Load Break Switch is engineered to excel in demanding environments while ensuring reliable and efficient operation.

Timetric Indoor medium voltage fuse style load switch Parameter (Specification)

Feature and Application of Timetric Indoor Vacuum Load Break Switch:

Feature: The Timetric Indoor Vacuum Load Break Switch offers several key features that make it an ideal choice for various applications. These features include:

1. 1.Wide Application Range: The product is suitable for use in factories, schools, residential areas, and high-rise buildings.
2. 2.High Voltage Rating: It operates at a rated voltage of 10KV, allowing for efficient acceptance and distribution of electric energy.
3. 3.Reliable Performance: The load break switch ensures reliable operation, providing effective control over the opening and closing of power distribution equipment.
4. 4.Versatile Use: It can be seamlessly integrated into ring switchgear and box-type substations, catering to different electrical system configurations.

5. Application: The Timetric Indoor Vacuum Load Break Switch finds widespread application in the following areas:

   1. 1.Factories: It enables efficient power distribution within industrial facilities.
   2. 2.Schools: The switch ensures reliable electrical supply in educational institutions.
   3. 3.Residential Areas: It plays a crucial role in powering residential complexes and buildings.
   4. 4.High-Rise Buildings: The load break switch is essential for maintaining electrical connectivity in tall structures.
   5. 5.Power Distribution Equipment: It facilitates the opening and closing operations of power distribution equipment, ensuring smooth functioning of the electrical system.

   Trust Timetric's Indoor Vacuum Load Break Switch for its exceptional performance and versatility in meeting diverse electrical requirements across a range of applications.

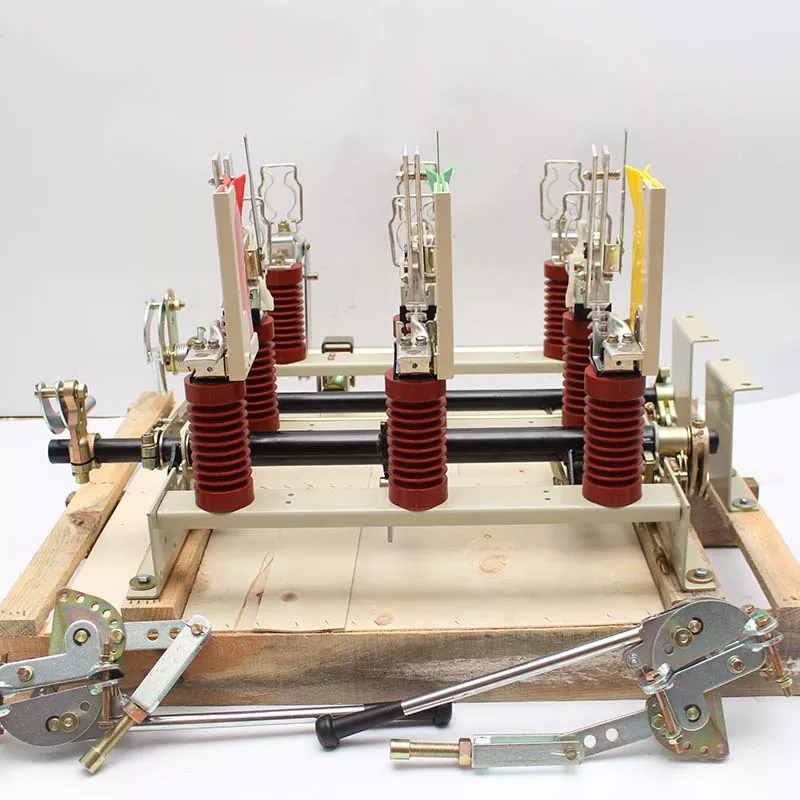

Timetric Indoor Vacuum Load Break Switch  Details
