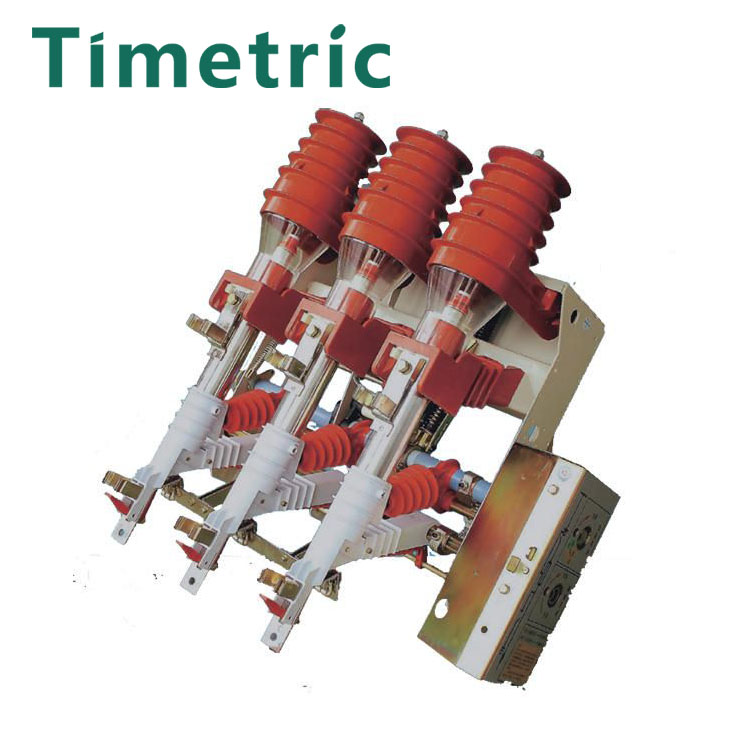

HV Vacuum Load Break Switch With Fuse

Timetric electrical is a large-scale HV Vacuum Load Break Switch With Fuse manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. Our products are competitively priced, making them a popular choice for customers across South America, the Middle East, Africa, and Southeast Asia.We are dedicated to providing them with the best possible service.

Send Inquiry

Product Description

Timetric HV Vacuum Load Break Switch With Fuse Introduction

HV Vacuum Load Break Switch With Fuse is a three phase high voltage switch equipment of 12kv, 50hz for breaking or closing load current, loop closed current. No-load transformer and cable charging electric current,close short circuit current. The load switch with earthing switch can bear short-circuit current.

FKN12-12RD/125-31.5 air high voltage load break switch-fuse combination unit is made of FKN2-12D load switch and S*LAJ-12(XRNT*-12) H.V current-limiting fuse box. I can be areliable short-circuit breaking current up to any current: breaking work load switch current, fuse short-circult breaking current breaking joint working between the current and the full shor-circuit current in any over-current, while fuse allows, through its impact load switch sub-gate.

Timetric HV Vacuum Load Break Switch With Fuse Parameter (Specification)

Model NO.	FN5
Breaking Capacity	High Voltage Circuit Breakers
Operation	Electric Type
Speed	High-Speed Circuit Breaker
Arc-extinguishing Medium	Vacuum
Installation	Fixed
Structure	ACB
Poles Number	4
Type	Circuit Breaker
Function	Circuit-Breaker Failure Protection
Certification	ISO9001-2000, CE, CCC
Rated Voltage	12 Kv
Altitude	up to 3,000m Above Sea Level
Special Conditions	Depends on The Customer
OEM/ODM	Yes
Frequency	50 Hz

Timetric HV Vacuum Load Break Switch With Fuse Feature And Application

HV Vacuum Load Break Switch With Fuse is widely used in the situations of industrial and mining establishiments and power distribution station of urban buildings. Combined electrical apparatus can protect transformer and other electric equipments. it is used more reliable than circuit breaker. especially, it can be perfectly used in terminal substation and box-type substation of urban net and rural net in order to control and protect ring net birabdial electric unit.
