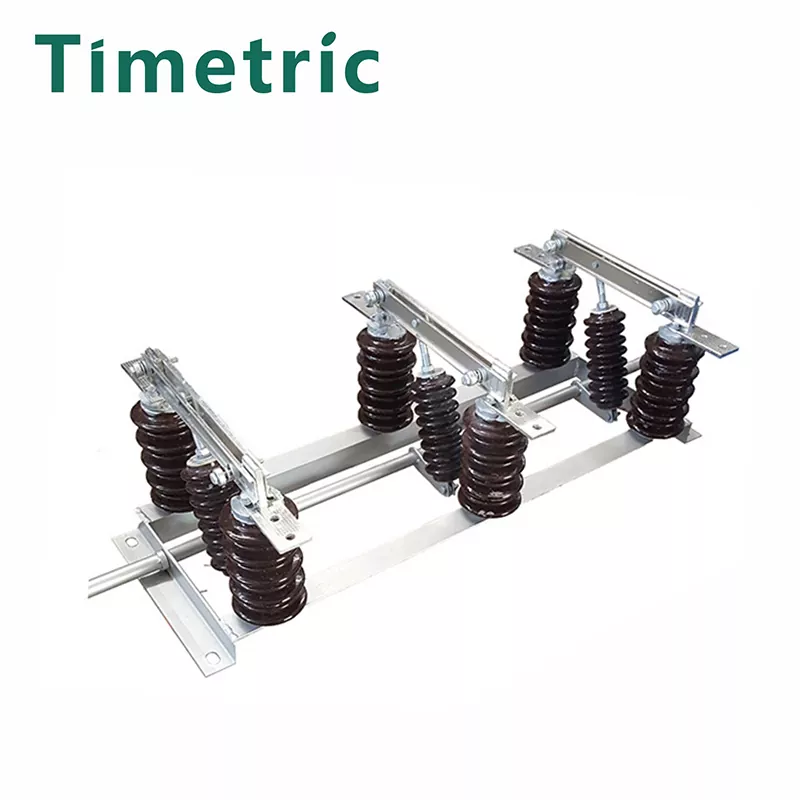

Outdoor Post-Mounted Silicone Insulator Disconnect Switch

Timetric  Outdoor Post-Mounted Silicone Insulator Disconnect Switch

The 10kV outdoor high-voltage isolating switch is purpose-built for integration into single-phase AC 50Hz high-voltage switchgear with a rated voltage of 10kV. It serves the critical function of establishing or disconnecting power supply under voltage conditions without a load.

For safe and secure operation, the switch is operated using an insulated hook rod, ensuring the protection of personnel.

The product model encompasses essential details, including the rated current in Amperes (A) and additional specifications like improved types such as anti-pollution or plateau designs. The rated voltage design serial number indicates its compatibility with the rated voltage of the switchgear, while being specifically classified as an outdoor isolating switch.

To ensure optimal performance, the switch is designed to withstand a wide temperature range from -40°C to +40°C. It is suitable for installation in locations with altitudes up to 2000 meters. With a resistance to wind pressure of up to 700Pa, equivalent to a wind speed of 34m/s, it remains stable in varying weather conditions.

Installation should be carried out in areas free from severe pollution, chemical corrosion, flammable substances, explosive materials, and violent vibrations to maintain the switch's integrity and functionality. The switch is designed with a pollution resistance level of 2, ensuring its reliability and performance in challenging environmental conditions.

• Timetric  Outdoor Post-Mounted Silicone Insulator Disconnect Switch Technical performance
