Outdoor GW4 Isolation Switch

Timetric electrical is a large-scale Outdoor GW4 Isolation Switch manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. Our products have a good price advantage and cover most of the South America, Middle East, Africa, Southeast Asia markets. We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

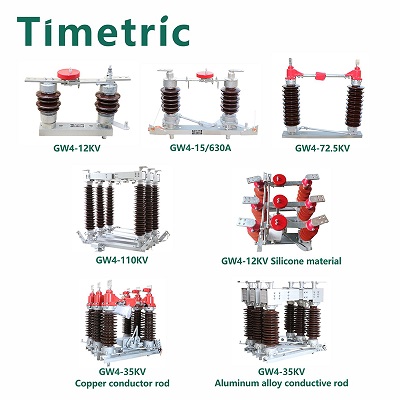

Timetric Outdoor GW4 Isolation Switch

Timetric Electric's GW4 AC high-voltage isolating switch is designed for power systems with a rated voltage ranging from 35kV to 252kV. Its primary functions include no-load switching of high-voltage lines and electrical isolation of equipment such as high-voltage busbars and circuit breakers during inspection from live high-voltage lines.

Key Specifications:

1.Altitude: Suitable for installation up to 1000m above sea level, with a special type designed for altitudes up to 4000m.
2.Ambient Temperature: Operates reliably in temperatures ranging from -35°C to +40°C, and down to -40°C in alpine regions.
3.Outdoor Wind Speed: Withstands wind speeds up to 34m/s.
4.Pollution Resistance: The pollution-resistant type is suitable for moderately polluted areas.
5.Ice Coating: The switch can handle ice coatings with a thickness not exceeding 10mm.
6.Seismic Intensity: Capable of withstanding seismic intensities not exceeding 8 degrees.
7.Installation Requirements: Should be installed in places free from gas, steam, chemical deposits, dust, dirt, and other substances that may impact insulation and conductivity. Severe vibrations should also be avoided.

Product Features:

1.Improved Structure: The bearing turntable design enhances the switch's waterproof function, and additional features like oil injection holes and adjusting screws improve maintenance convenience.
2.Brazing Process: Conductive rod and contact joints are brazed, and soft connections are used between contact fingers, reducing main circuit resistance and minimizing heating issues during operation. Grounding components enhance the grounding circuit's reliability.
3.Surface Treatment: The exposed part of the main conductor is copper-plated with silver, providing a smooth, corrosion-resistant, and durable surface.
4.Enhanced Shaft and Hole Matching: Copper-copper or stainless steel-copper matching replaces iron-copper matching, reducing rust-related problems during long-term outdoor use. Stainless steel components and hot-dip galvanizing enhance switch corrosion resistance.
5.Precision Castings: Replace welded parts with precision castings to address safety concerns associated with weak welding.
6.Installation Flexibility: The grounding knife switch allows interchangeability left and right on-site, using a unipolar linkage mode, simplifying installation during construction.

In summary, Timetric Electric's GW4 AC high-voltage isolating switch provides a reliable solution for power systems with its robust design and innovative features. It ensures safe operation in various environmental conditions and offers improved convenience during installation and maintenance.

Type	GW4-40.5	GW4-72.5	GW4-126	GW4-126G	GW4-145
Rated voltage (kV)	40.5	72.5	126	126	145
Rated current (A)	630, 1250	2000, 2500	630, 1250	2000, 2500	630, 1250
Short time withstand current (rms) (kA)	20, 31.5	40(46)	20, 31.5	40(46)	20, 31.5
Peak withstand current (peak) (kA)	50, 80	100(104)	50, 80	100(104)	50, 80
Rated short-time power frequency withstand voltage (rms) (kV) - to each	80	140	185（230）	185	275
Rated short-time power frequency withstand voltage (rms) (kV) - between breaks	110	160	210（265）	210	315
Lightning impulse withstand voltage (peak) (kV) - to each	185	325	450（550）	450	650
Lightning impulse withstand voltage (peak) (kV) - between breaks	215	375	520（630）	550	750
Horizontal force of terminal (N)	550（750）	(735-750)	1000	1000	1500
Weight of single pole (kg)	80	200	240	300	300
