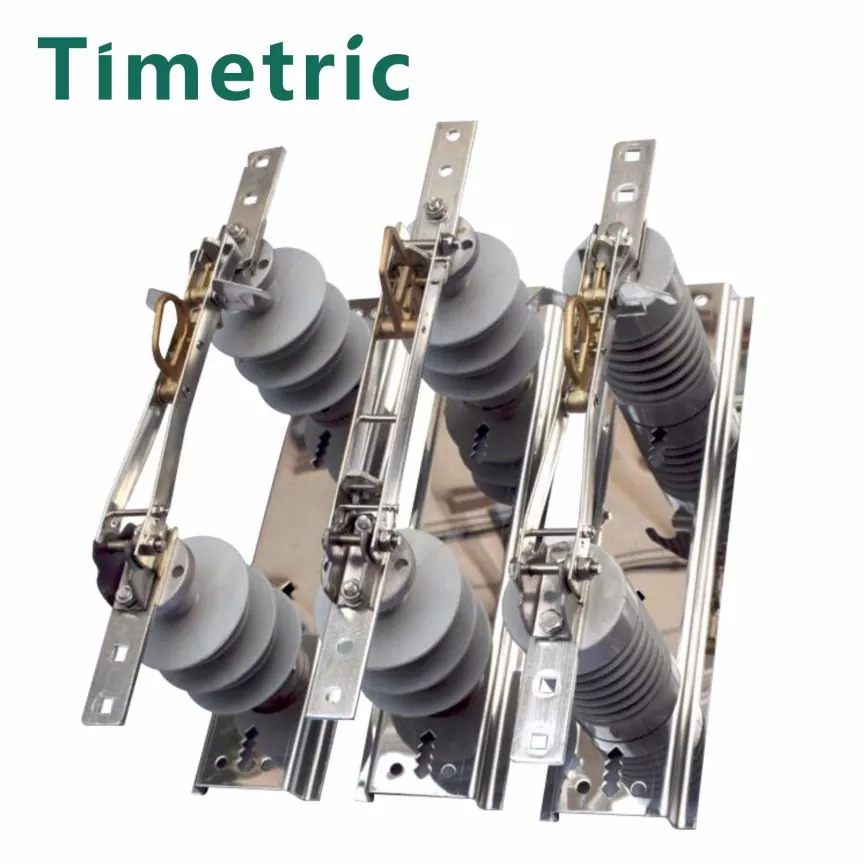

Outdoor GCD-12KV Post-Mounted Silicone Insulator Disconnect Switch

Timetric  Outdoor GCD-12KV Post-Mounted Silicone Insulator Disconnect Switch

The 10kV outdoor high-voltage isolating switch is specifically designed to be integrated into single-phase AC 50Hz high-voltage switchgear with a rated voltage of 10kV. Its primary function is to establish or disconnect power supply without a load under voltage conditions.

To ensure the safety of personnel, the switch is operated using an insulated hook rod, providing protection during operation.

The product model includes important information such as the rated current in Amperes (A) and additional specifications like improved designs such as anti-pollution or plateau designs. The rated voltage design serial number indicates its compatibility with the rated voltage of the switchgear. Moreover, it is specifically classified as an outdoor isolating switch.

The switch is designed to perform reliably within a wide temperature range from -40°C to +40°C and is suitable for installation in locations with altitudes of up to 2000 meters. It can withstand wind pressure of up to 700Pa, equivalent to a wind speed of 34m/s, ensuring stability even in varying weather conditions.

During installation, it is important to select areas that are free from severe pollution, chemical corrosion, flammable substances, explosive materials, and strong vibrations. This ensures the switch's integrity and functionality over time. Additionally, the switch is designed with a pollution resistance level of 2, guaranteeing its reliability and performance in challenging environmental conditions.

• Timetric  Outdoor GCD-12KV Post-Mounted Silicone Insulator Disconnect Switch Technical performance
