How Can LW34-40.5 SF6 Circuit Breaker Improve the Reliability and Safety of Modern Power Systems

Abstract: The LW34-40.5 SF6 Circuit Breaker is an advanced high-voltage switching device designed for reliable power distribution and transmission applications. Manufactured with precision engineering, this circuit breaker provides excellent insulation performance, stable interruption capability, and long service life. As an experienced electrical equipment supplier, Shuyi focuses on delivering high-quality solutions that meet the demanding requirements of substations, industrial facilities, and power networks worldwide.

Table of Contents

• What Is LW34-40.5 SF6 Circuit Breaker?
• What Are the Key Features of LW34-40.5 SF6 Circuit Breaker?
• Technical Specifications and Performance Parameters
• Why Choose SF6 Technology for High Voltage Switching?
• Where Is LW34-40.5 SF6 Circuit Breaker Applied?
• How to Select the Right High Voltage Circuit Breaker?
• Maintenance and Service Considerations
• Frequently Asked Questions
• Conclusion

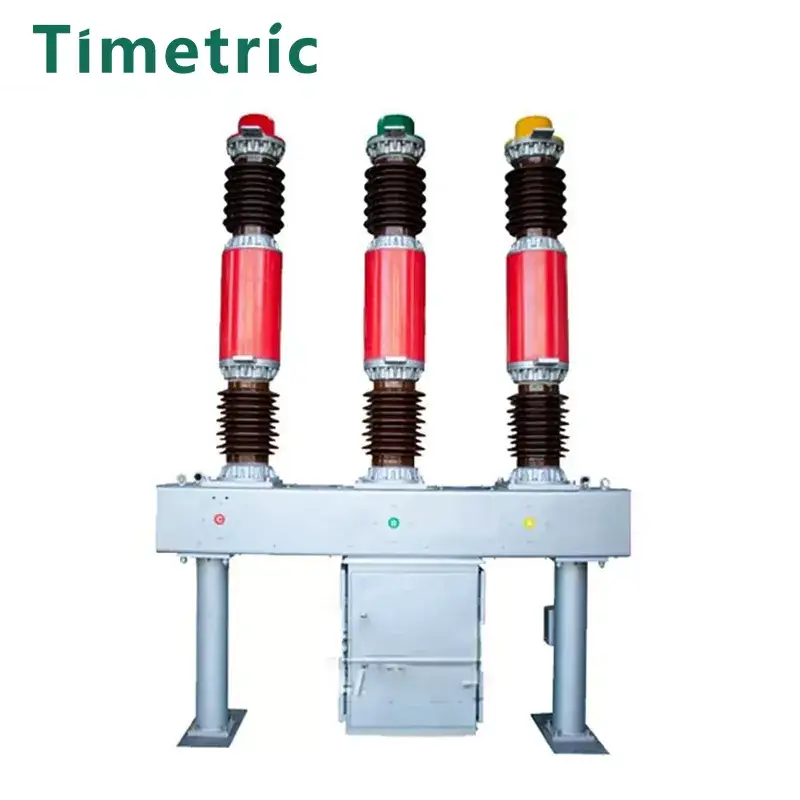

What Is LW34-40.5 SF6 Circuit Breaker?

The LW34-40.5 SF6 Circuit Breaker is a high-voltage electrical protection device designed for AC power systems with rated voltage up to 40.5kV. It uses sulfur hexafluoride (SF6) gas as the insulating and arc-extinguishing medium, enabling efficient interruption of fault currents while maintaining compact construction and excellent electrical performance.

Unlike traditional circuit breakers that rely on air or oil insulation technology, the SF6-based design offers stronger dielectric recovery characteristics and improved operational stability. The LW34-40.5 SF6 Circuit Breaker is widely used in substations, power plants, mining facilities, industrial power systems, and other medium-voltage networks where safety and reliability are critical.

With professional manufacturing experience and strict quality control, Shuyi provides dependable circuit breaker solutions that support stable power transmission and reduce operational risks for global customers.

What Are the Key Features of LW34-40.5 SF6 Circuit Breaker?

The LW34-40.5 SF6 Circuit Breaker integrates advanced mechanical structures and reliable insulation technology to achieve long-term performance under demanding electrical conditions.

• High Breaking Capacity: Designed to quickly interrupt short-circuit currents and protect electrical equipment from damage.
• Excellent Insulation Performance: SF6 gas provides superior dielectric strength, improving operational safety.
• Compact Structure: The optimized design reduces installation space requirements while maintaining high performance.
• Long Mechanical Life: Durable operating mechanisms support frequent switching operations.
• Stable Environmental Adaptability: Suitable for different climate conditions and industrial environments.
• Low Maintenance Requirement: Reliable sealing technology helps minimize SF6 leakage and maintenance frequency.

Technical Specifications and Performance Parameters

Understanding technical parameters is essential when selecting a suitable high-voltage circuit breaker. The following table provides typical specifications of the LW34-40.5 SF6 Circuit Breaker.

These parameters demonstrate why the LW34-40.5 SF6 Circuit Breaker is considered a reliable choice for medium and high-voltage electrical systems requiring efficient protection and stable operation.

Why Choose SF6 Technology for High Voltage Switching?

SF6 technology has become widely adopted in high-voltage electrical equipment because of its excellent insulation characteristics and arc extinguishing ability. Compared with conventional switching methods, SF6 circuit breakers provide several important advantages.

• Superior Arc Extinguishing Performance: SF6 gas effectively absorbs electrical energy during interruption, allowing rapid fault clearance.
• Enhanced System Safety: Fast breaking capability helps prevent damage caused by electrical faults.
• Reliable Operation: The stable characteristics of SF6 gas ensure consistent performance throughout the equipment lifecycle.
• Space Efficiency: Higher insulation strength allows manufacturers to develop more compact equipment designs.

For power utilities and industrial users, choosing a reliable SF6 circuit breaker manufacturer can significantly improve grid stability and reduce unexpected downtime.

Where Is LW34-40.5 SF6 Circuit Breaker Applied?

The LW34-40.5 SF6 Circuit Breaker is designed for various electrical environments where dependable switching and protection are required.

• Power Substations: Used for controlling and protecting transmission and distribution equipment.
• Industrial Power Systems: Provides reliable protection for factories, manufacturing plants, and heavy industries.
• Energy Infrastructure: Suitable for renewable energy projects, power stations, and grid expansion projects.
• Mining and Chemical Industries: Supports safe operation in environments requiring stable electrical protection.
• Commercial Electrical Networks: Helps maintain continuous power supply for large buildings and facilities.

How to Select the Right High Voltage Circuit Breaker?

Selecting an appropriate circuit breaker requires comprehensive evaluation of electrical requirements, environmental conditions, and operational expectations.

• Confirm the rated voltage matches the electrical system requirements.
• Evaluate short-circuit breaking capacity according to possible fault levels.
• Consider installation environment, including temperature and humidity conditions.
• Check operating frequency and maintenance requirements.
• Select products from experienced manufacturers with proven quality management systems.

A professional supplier can help customers choose the correct configuration and provide technical support throughout installation and operation.

Maintenance and Service Considerations

Although LW34-40.5 SF6 Circuit Breaker products are designed for long-term reliability, regular inspection is important to maintain optimal performance.

• Inspect SF6 gas pressure periodically.
• Check sealing conditions to prevent gas leakage.
• Test mechanical operating components regularly.
• Monitor electrical contact performance.
• Follow manufacturer maintenance recommendations.

Proper maintenance not only extends equipment service life but also ensures continuous protection for power systems.

Frequently Asked Questions

1. What is the rated voltage of LW34-40.5 SF6 Circuit Breaker?

The LW34-40.5 SF6 Circuit Breaker is designed for electrical systems with a rated voltage of 40.5kV, making it suitable for medium and high-voltage power applications.

2. Why does LW34-40.5 SF6 Circuit Breaker use SF6 gas?

SF6 gas provides excellent insulation strength and efficient arc extinguishing performance, allowing the circuit breaker to safely interrupt fault currents and maintain stable operation.

3. Where can LW34-40.5 SF6 Circuit Breaker be installed?

It can be applied in substations, industrial facilities, power plants, and other electrical networks requiring reliable high-voltage protection equipment.

4. How often should an SF6 circuit breaker be maintained?

Maintenance intervals depend on operating conditions and manufacturer recommendations. Regular inspections of gas pressure, sealing performance, and mechanical components are recommended.

Conclusion

The LW34-40.5 SF6 Circuit Breaker is a reliable solution for modern power systems that require high safety standards, efficient fault interruption, and long-term operational stability. With advanced SF6 insulation technology, robust construction, and professional manufacturing support, it helps customers achieve safer and more efficient electrical management.

If you are looking for a dependable LW34-40.5 SF6 Circuit Breaker supplier with professional technical support and customized electrical solutions, please contact us. Our team is ready to provide high-quality products and reliable service for your power system projects.
