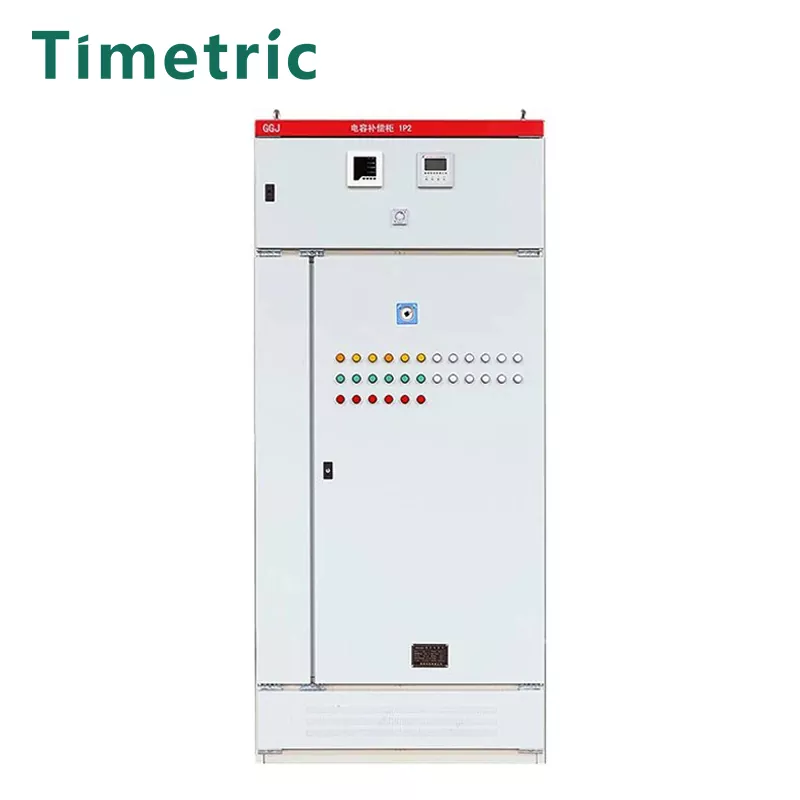

Low Voltage Power Distribution Reactive Compensation Cabinet Indoor GGJ Series

Low voltage power distribution reactive compensation cabinet indoor GGJ series, English GGJ is model programming, model code given in order, GGJ is capacitor compensation cabinet. GGJ type reactive power automatic compensation is generally suitable for industrial and mining enterprises and residential AC 50Hz, three-phase 380V, 100KVA-1000KVA transformer capacity distribution system, as reactive power compensation. GGJ should be used in conjunction with GGD type low voltage distribution panel.

Low voltage power distribution reactive compensation cabinet indoor GGJ series can automatically control the grouped capacitors to be put into or cut out of the grid in 4-12 groups (steps) within 10-120S according to the demand of the grid for reactive power compensation, thereby realizing automatic reactive power compensation, stabilizing the voltage quality of the power supply network, reducing the loss of the transmission and distribution system and transformer, and achieving the purpose of energy saving and improving the power supply quality of the grid.

Low voltage power distribution reactive compensation cabinet indoor GGJ series low voltage reactive compensation cabinet In industrial and agricultural production, there are a large number of reactive devices, which will reduce the voltage of the power system, increase power loss, and thus affect the quality of power. Therefore, the corresponding reactive compensation device came into being. GGJ low voltage reactive compensation cabinet is specially produced for low voltage reactive compensation.

Model Description

Main Technical Parameters

Structure And Mounting Dimensions

Working Environment：

Low voltage power distribution reactive compensation cabinet indoor GGJ series Environmental conditions

Ambient temperature: -40℃~+50℃;

Relative humidity: not more than 95%;

Altitude: not more than 2000m;

Maximum operating voltage: not more than 110% of the rated voltage (except for the transition process);

Maximum operating current: not more than 1.3 times the rated current (except for the transition process);

Advantages and features of switchgear

1. Low voltage power distribution reactive compensation cabinet indoor GGJ series AC low-voltage power distribution complete switchgear adopts the form of a universal cabinet. The cabinet frame is made of 8MF cold-bent steel and partially welded. The frame parts and special supporting parts are all produced and supplied by our company to ensure the accuracy, quality and delivery time of the cabinet. The parts of the universal cabinet are designed according to the modular principle, and there are 20 module installation holes with a high universal coefficient. The factory can realize pre-production. It not only shortens the production and manufacturing cycle, but also improves work efficiency.

2. Low voltage power distribution reactive compensation cabinet indoor GGJ series fully considers the heat dissipation problem during the operation of the cabinet. There are different numbers of heat dissipation slots at the upper and lower ends of the cabinet. When the electrical components in the cabinet are heated, the heat rises and is discharged through the upper slots, while the cold air is continuously replenished into the cabinet from the lower slots, so that the sealed cabinet forms a natural ventilation duct from bottom to top to achieve the purpose of heat dissipation.

3. In accordance with the requirements of modern industrial product design, Low voltage power distribution reactive compensation cabinet indoor GGJ series adopts the golden ratio method to design the cabinet shape and the division size of each part, making the whole cabinet beautiful and generous.

4. The cabinet door is connected to the frame with a rotating shaft hinge, which is easy to install and disassemble. A mountain-shaped rubber-plastic strip is embedded in the folding edge of the door. When closing the door, the strip between the door and the frame has a certain compression stroke, which can prevent the door from directly colliding with the cabinet body and improve the protection level of the door.

5. The instrument door equipped with electrical components is connected to the frame with multiple strands of soft copper wire. The mounting parts in the cabinet are connected to the frame with knurled washers, and the whole cabinet constitutes a complete grounding protection system.

6. The surface of the cabinet is treated with high-voltage electrostatic spray powder. It has strong adhesion and good texture. The whole cabinet is matte, which avoids glare effects and creates a better and more comfortable visual environment for the on-duty personnel.

7. The top cover of the cabinet can be removed when necessary to facilitate the assembly and adjustment of the main busbar on site. The four corners of the cabinet top are equipped with lifting rings for lifting and shipping.

8. The protection level of the cabinet is IP30, and users can also choose between IP20~IP40 according to the requirements of the use environment.

Product Real Shot

FAQ

A1:Can your company customize products according to my requirements?

Q1:Yes, we can customize products according to customer requirements. Generally speaking, customers only need to provide: Circuit layout, voltage, current, etc.

A2:AWhat is your fastest delivery time?

Q2:Normally, we accept customer inquiries. After the switch cabinet technical parameters are connected, it takes 1-2 days to issue a price list and communicate with customers about the production and delivery time based on the actual situation.

A3:How is your after-sales service?

Q3:We support a 1-year warranty. The normal quotation does not include on-site after-sales service. Free online communication and guidance are available.
