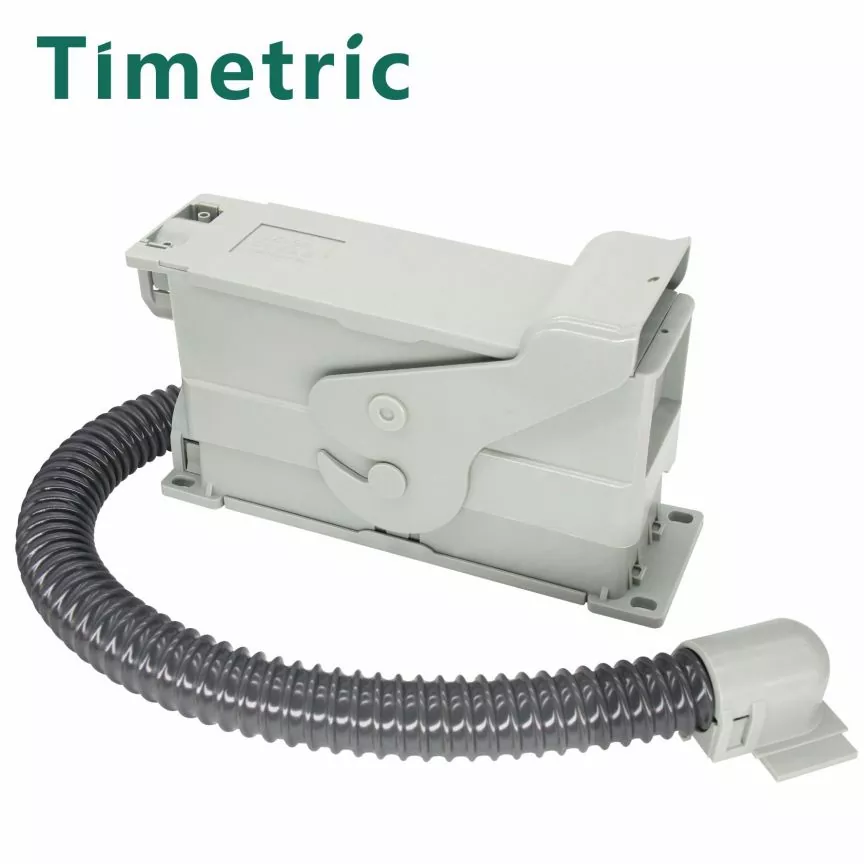

JZ-58 Core Vacuum Circuit Breaker Connector

JZ-58 Core Vacuum Circuit Breaker Connector

The contact pairs of JZ-58 Core Vacuum Circuit Breaker Connector are pin and socket structure, the number of contact pairs is 58 pairs, and the number of contact pairs can also be freely selected.

Wiring method: open the locking device of the plug seat, separate the plug from the socket, remove the cover respectively, and put the wire into the pin

or the wiring hole of the jack, after clamping firmly with special clamps, put the pins or jacks into the corresponding plug or socket base respectively.

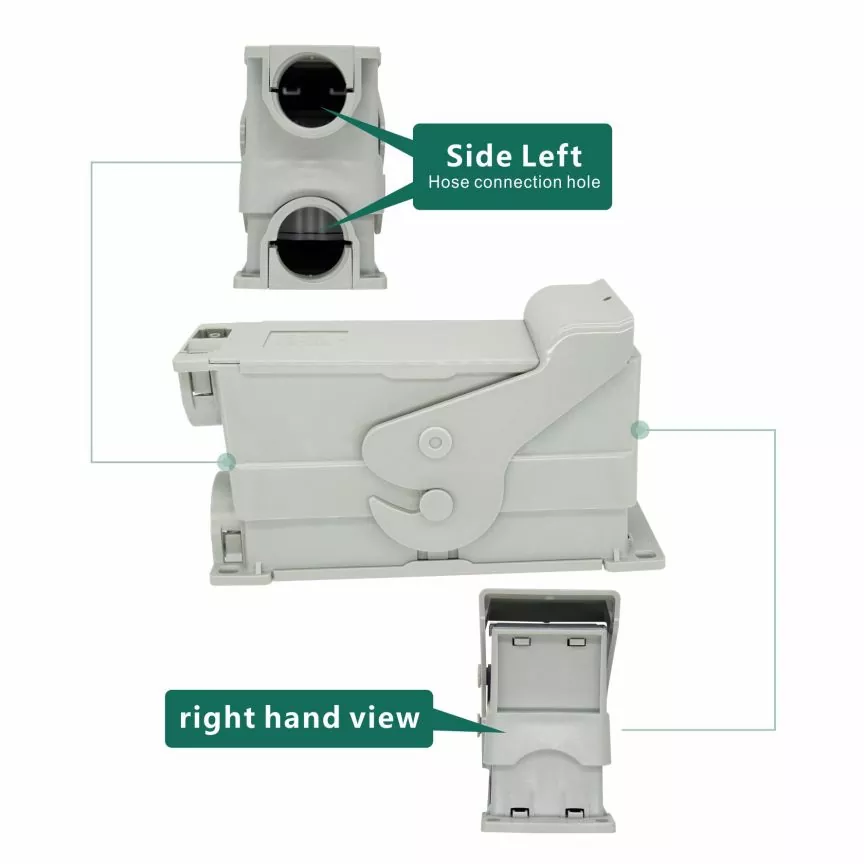

If you hear a snapping sound in the butterfly mounting hole, it means it has been installed in place. After the wiring harness is led out from the lead port, it is equipped with a special plastic soft

Tube M36×8 (lined with plastic metal spring), and then fixed on the plug or socket base with the cover plate, the other end of the wire harness is used

The special turning head is fixed on the equipment.

After the pins and jacks are put into the fixing holes of the plug base, they are fixed by the double-sided clips inside the plug and socket base.

Special removal tool for JZ-58 Core Vacuum Circuit Breaker Connector

When the pins and sockets need to be replaced due to misinstallation, they can be removed flexibly using the special removal tool (fork) provided by our company without damage

It can be used repeatedly without damaging the pin, the surface plating of the jack and the base of the plug seat.

How to use: Insert the two pull-out pieces of the fork into the large diameter of the pin to be replaced and the butterfly hole of the socket base, and pull out gently.

Fork, the pin or socket will fall out with the fork. If it is not easy to fall out, you can push back from the head of the pin, or use a thin

Put the rod into the jack and push it back.

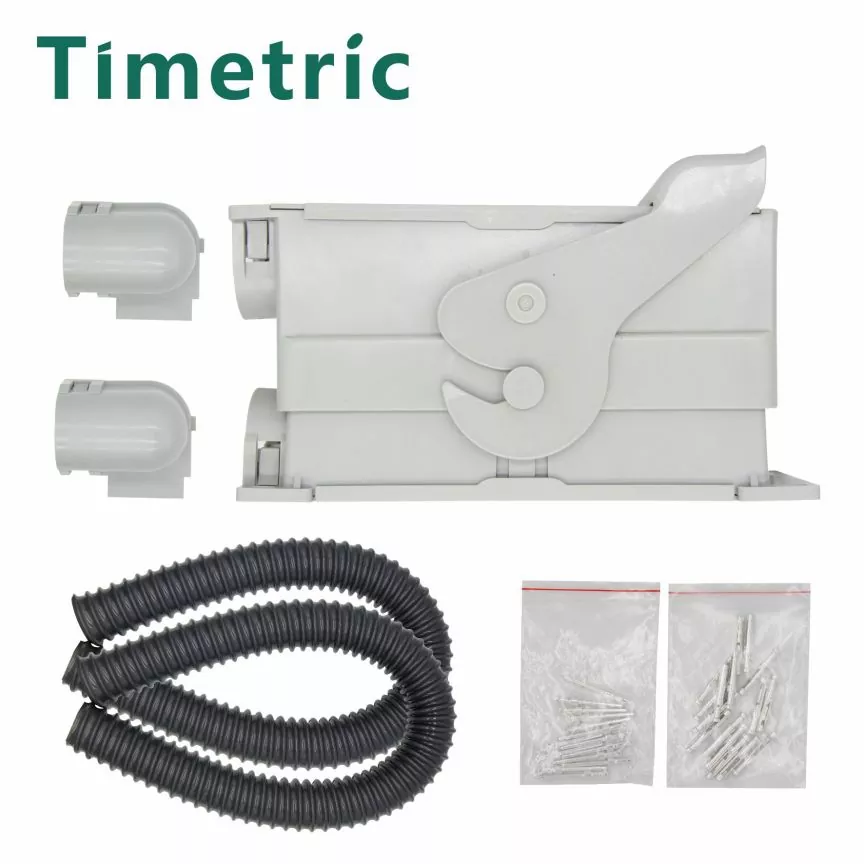

Please specify when ordering：The pins and jacks that come with the socket are limited to 1.5 square wires. If you need to use 1 square, 2.5 square, and 4 square pins, please specify when ordering. Plugs and sockets are available separately.
