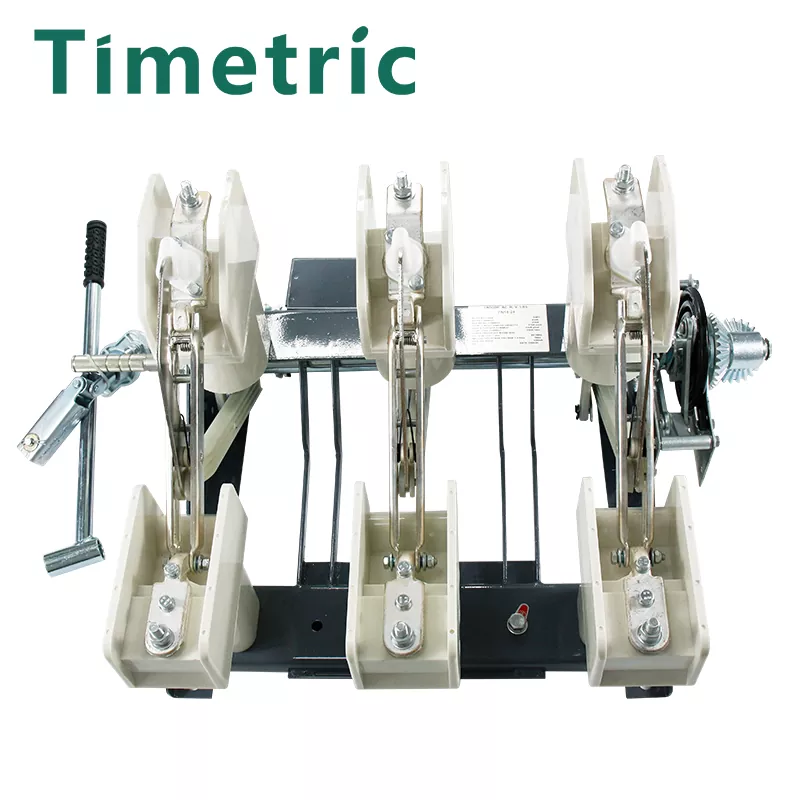

FN18 Gas-Blown Interrupter Indoor Load Switch

FN18 Gas-Blown Interrupter Indoor Load Switch manufactured by Timetric Electric is a three-phase, high-voltage switchgear with a rated voltage of 24 kV and a rated frequency of 50 Hz. It is used to disconnect and connect load currents, close circuit currents for electrical appliances, unloaded transformers, and cable charging currents, and to close short-circuit currents. Equipped with a grounding switch, it can withstand short-circuit currents and is primarily used in urban distribution stations and industrial power equipment in three-phase ring networks or terminal power supply, providing short-circuit protection for control boxes. It is equipped with both manual and electric operating mechanisms to facilitate the three-way remote control requirements of power systems.

1. Gas Explosion (Current-Related)

· Whenever excessive overcurrent occurs, high temperatures are generated inside the arc chamber, causing a violent release of gas molecules.

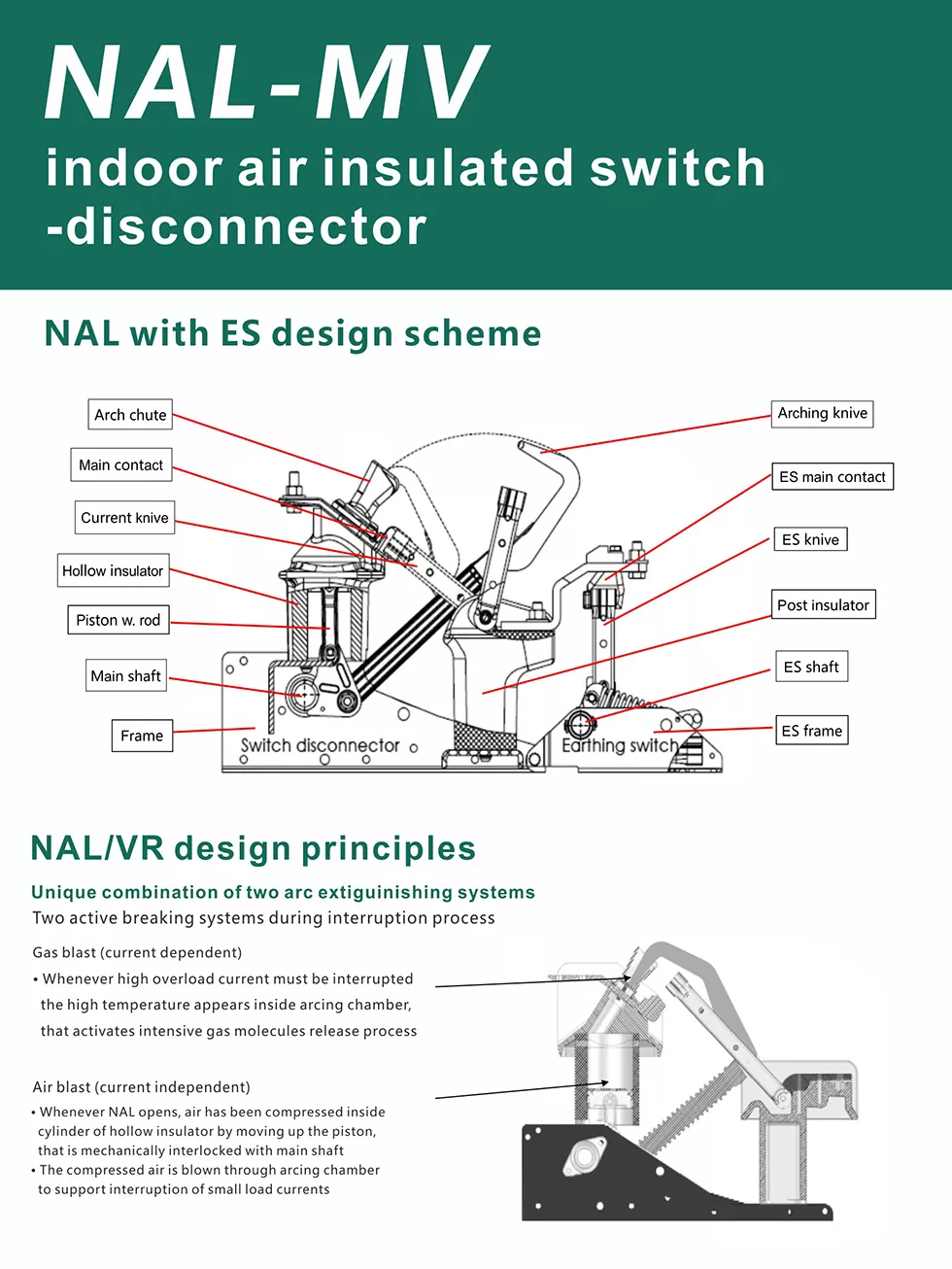

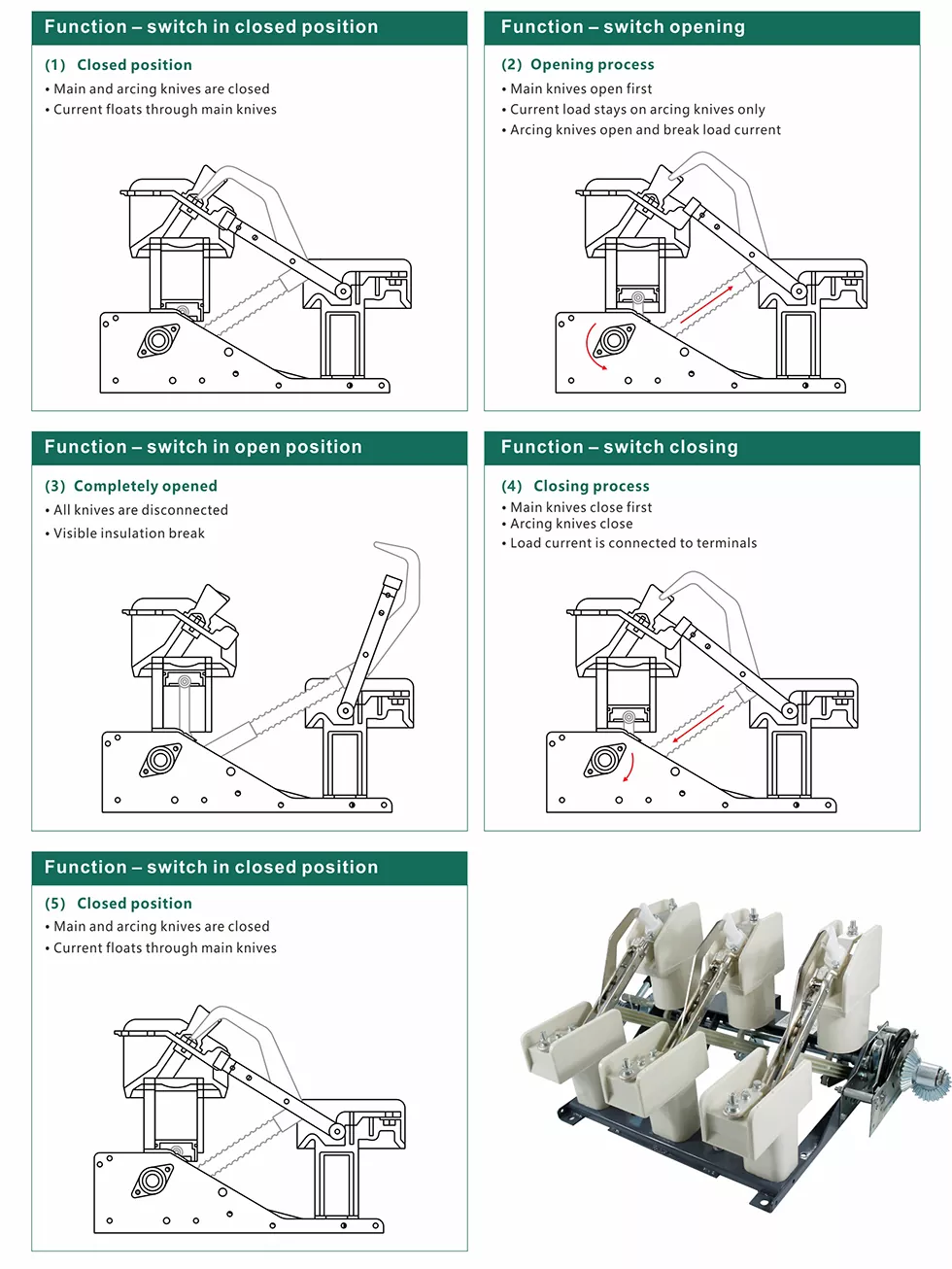

2. Air Blow (Independently Controlled)

· Each time the NAL is activated, the upward movement of the piston compresses air within the hollow insulator cylinder. This compression process is mechanically coupled to the spindle.

· The compressed air is blown out through the discharge chamber, helping to interrupt low-load currents.

Working Environment：

1. Line switches and circuit breakers in medium-voltage power grids

Interrupt loads, perform segmented operations, and isolate downstream equipment.

2. Industrial and commercial applications

3. FN18 Gas-Blown Interrupter Indoor Load Switch and protection of distribution transformers when used in conjunction with fuses (IEC 62271-105)

4. NAL switches with the following features:

1000 mechanical no-load operations

Up to 100 electrical operations at full rated current

5. Service conditions - Indoor environments, room air temperature between -40°C and 55°C

The standard NAL/F is suitable for normal operating conditions (Design Category 0)

The NAL-H/NALF-His is suitable for harsh operating environments (compliant with Design Category 2 in IEC 62271-304:2008-05)

Advantages ofFN18 Gas-Blown Interrupter Indoor Load Switch

Key Advantages ofFN18 Gas-Blown Interrupter Indoor Load Switch：

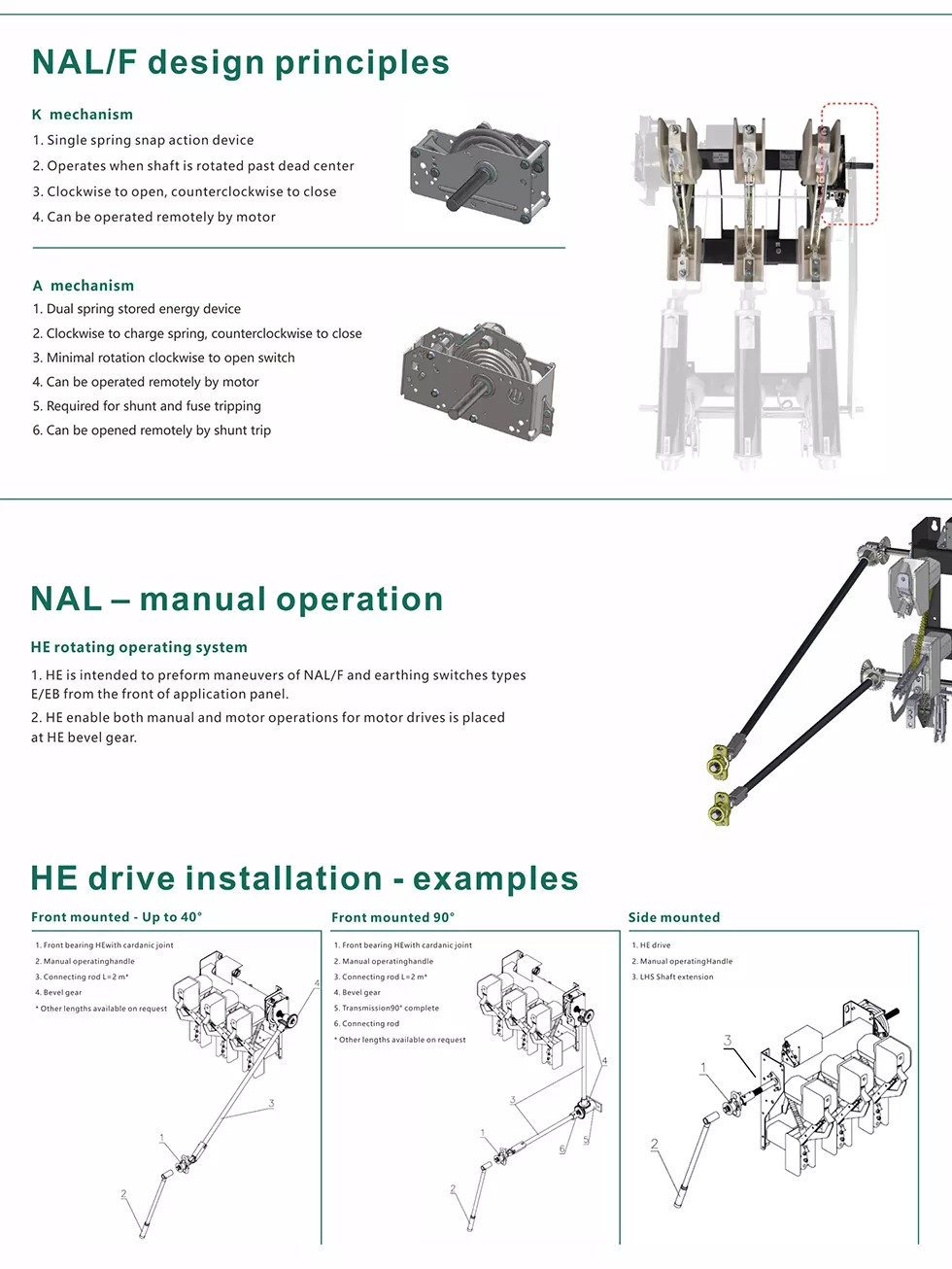

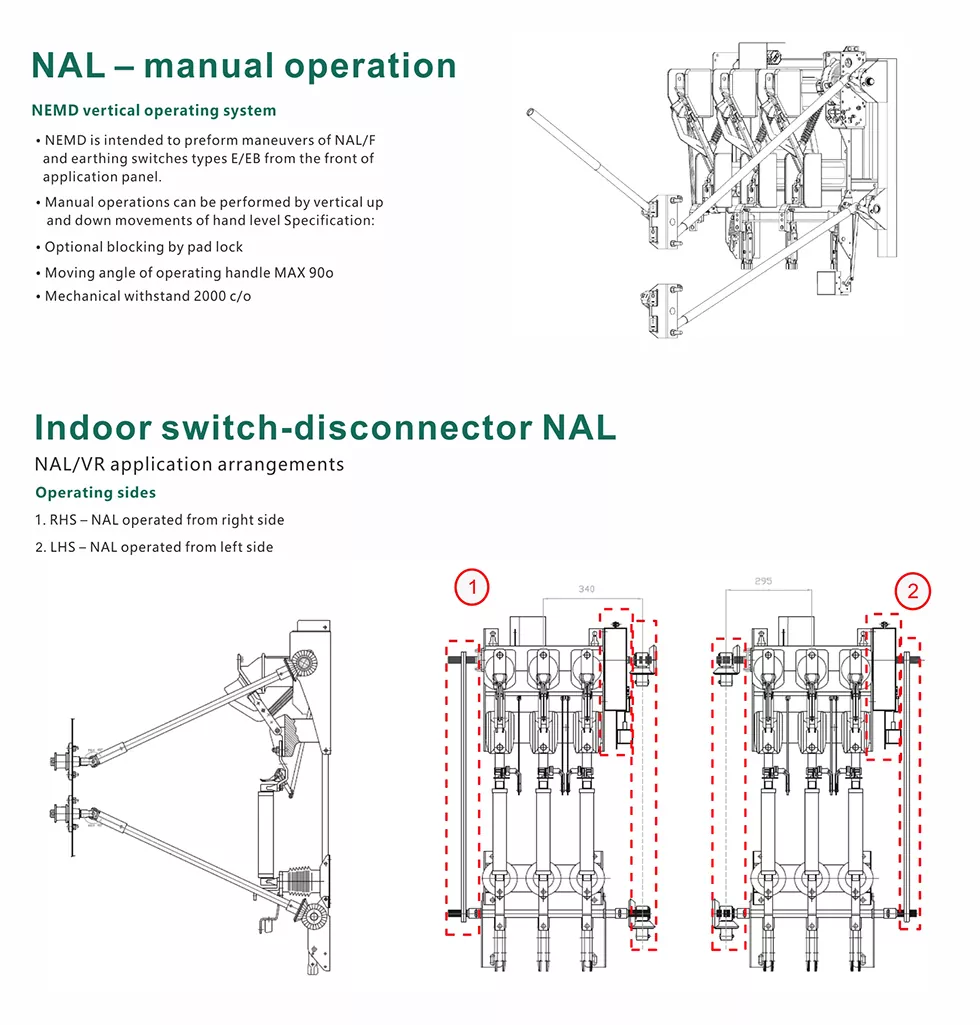

1. Main Configurable Components

· Single or dual spring mechanism

· Auxiliary contacts for on/off and earthing switches

· Motor drive (shaft-mounted and front-mounted)

· Blocking and tripping coils

· Fuse holders with or without fuse tripping system (upper/lower mounting)

· Earthing switch (upper/lower mounting)

· Mechanical interlock

· Blown fuse indicator

2. FN18 Gas-Blown Interrupter Indoor Load Switch-fuse combinations are commonly used as line and transformer switches and offer a cost-effective alternative to circuit breakers.

Due to their excellent breaking performance and automatic fuse tripping system (IEC 62271-105), fuses are capable of interrupting a full range of overload and short-circuit currents.

Due to the extremely fast response time of current-limiting fuses, they can significantly reduce the expected current.
