How Does an SF6 Circuit Breaker Ensure Reliability in High Voltage Applications
2025-11-03
When you are responsible for a high-voltage substation or a critical industrial power network, the question of reliability is not just a technical point. It is the very foundation of safety, operational continuity, and financial stability. We have all heard the nightmares of unexpected outages and the massive costs they incur. So, when planners and engineers ask me how an SF6 Circuit Breaker stands up to this immense pressure, I do not just give them a datasheet. I explain the engineering philosophy behind it.
Having spent two decades in this industry, I have seen technologies come and go. The reason the SF6 Circuit Breaker has remained the dominant force in high-voltage applications for so long is not an accident. It is a direct result of its unparalleled ability to manage the extreme energies present in a high-voltage fault. Let us break down exactly how it achieves this legendary reliability.
What Makes the Interruption Process in an SF6 Circuit Breaker So Effective
The core duty of any circuit breaker is to extinguish the arc that forms when contacts separate. In high-voltage systems, this arc is not a simple spark; it is a torrent of conductive plasma. An ordinary SF6 Circuit Breaker excels here because of the unique properties of Sulfur Hexafluoride (SF6) gas.
Unlike air, SF6 is an electronegative gas. This means its molecules have a powerful affinity for free electrons. When an arc forms, the SF6 gas rapidly captures and absorbs the free electrons that constitute the arc plasma. This effectively de-ionizes the path, starving the arc and causing it to be extinguished with incredible speed. This process happens within milliseconds, far faster than any air-blast or oil-based system could manage. It is this fundamental property that gives the SF6 Circuit Breaker its supreme arc-quenching capability.
Which Key Design Features and Parameters Guarantee Long-Term Performance
A great principle needs a robust physical design to execute it reliably. Our Timetric engineers have spent years refining the architecture of our SF6 Circuit Breaker line to not just meet standards, but to exceed the demanding life-cycle expectations of our clients. Let us look at the critical parameters we focus on.
Our design philosophy centers on a sealed-for-life puffer-type interruption chamber. This means that the same gas charge is used for the entire operational life, with no external compression source required. The opening of the contacts themselves drives a piston that compresses the SF6 gas and blasts it through the arc, ensuring perfect synchronization.
Here are some of the core design features we implement
-
Welded Stainless-Steel Enclosure Provides a hermetic seal for a lifetime of protection against moisture and gas leakage.
-
Epoxy Resin Insulators Offer exceptional mechanical strength and tracking resistance, even in heavily polluted environments.
-
Self-Blast Arc Quenching System For higher voltage levels, this design uses the arc's own energy to generate the quenching pressure, optimizing efficiency.
-
Integrated Smart Gas Density Monitor Constantly relays gas pressure and temperature data to our control systems, providing real-time health diagnostics.

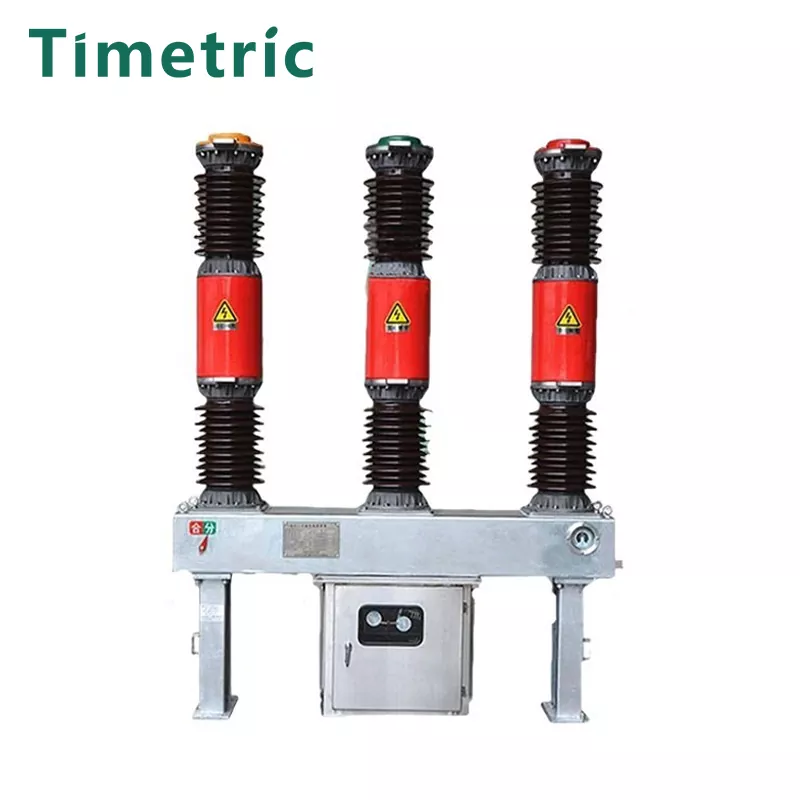

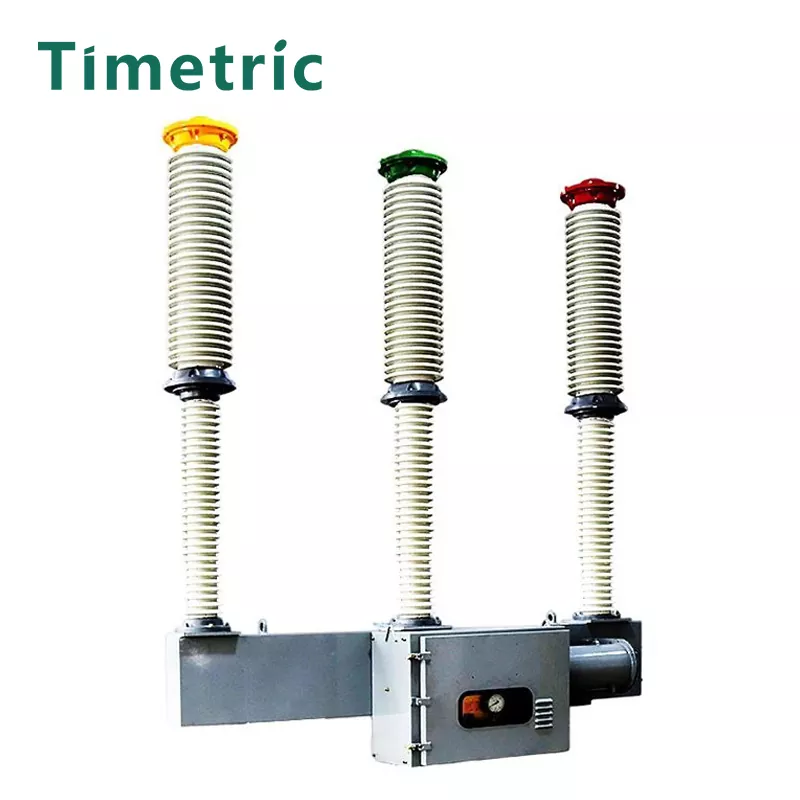

To give you a clearer picture, here is a table outlining the standard parameters for our medium to high-voltage SF6 Circuit Breaker products.
| Parameter | Value Range | Standard |
|---|---|---|
| Rated Voltage | 72.5 kV - 245 kV | IEC 62271-100 |
| Rated Normal Current | 2000 A - 4000 A | IEC 62271-100 |
| Rated Short-Circuit Breaking Current | 31.5 kA - 50 kA | IEC 62271-100 |
| SF6 Circuit Breaker Gas Pressure (at 20°C) | 6.0 bar (absolute) | Timetric Specification |
| Mechanical Endurance | 10,000 Operations | IEC 62271-100 |
Are There Different Types of SF6 Circuit Breakers for Different Needs
Absolutely. A one-size-fits-all approach does not work in high-voltage engineering. The specific application dictates the optimal design. We at Timetric provide tailored solutions because the needs of a wind farm are different from those of a city-center substation.
The primary distinction lies in the mechanism used for interrupting the arc. We can break this down into two main types.
| Type | Operating Principle | Ideal Application |
|---|---|---|
| Single Pressure Puffer Type | The moving piston compresses the SF6 gas in a single chamber, blasting it axially through the arc. | The most common type, used extensively in substations from 72.5kV to 245kV. Known for its simplicity and robustness. |
| Double Pressure Type | Uses a high-pressure and a low-pressure reservoir. Valves open to release high-pressure gas to the arc chamber. | Largely superseded by more modern designs, but was historically used for the very highest voltage levels. |
Your Top SF6 Circuit Breaker Questions Answered Directly
Over the years, I have had the privilege of speaking with thousands of engineers. Here are the questions I hear most often about the SF6 Circuit Breaker.
FAQ 1 What about the environmental concerns regarding SF6 gas
This is the most critical question today. SF6 is a potent greenhouse gas, and responsible management is paramount. Timetric addresses this head-on with a two-pronged approach. First, our breakers are designed for zero leakage throughout their operational life, minimizing the risk of emission. Second, and most importantly, we operate a closed-loop, full-lifecycle gas management program. We provide recovery and recycling services for the gas at the end of the breaker's life, ensuring it is properly handled and does not enter the atmosphere.
FAQ 2 How does the maintenance regime for an SF6 Circuit Breaker compare to vacuum technology
An SF6 Circuit Breaker, especially our sealed-pressure puffer type, is renowned for its low maintenance requirements. The primary maintenance task is monitoring the gas density and ensuring the health of the operating mechanism. Unlike vacuum interrupters which can require careful contact erosion inspection, the arc contacts in our SF6 Circuit Breaker are housed in a sealed environment and are typically rated for the full life of the interrupter unit. This translates to less frequent intrusive maintenance and higher availability.
FAQ 3 Can an SF6 Circuit Breaker be integrated with modern digital substation systems
Without a doubt. At Timetric, we see this as the future. Our latest SF6 Circuit Breaker models come equipped with intelligent electronic devices (IEDs) that support IEC 61850 communication protocols. This allows for seamless integration into digital substations, providing real-time data on operating times, contact wear, gas density, and mechanical status. This transforms the breaker from a simple protective device into a smart grid node, enabling predictive maintenance and enhancing grid resilience.
Ready to Specify Uncompromising Reliability for Your Next Project
The question of reliability in high-voltage applications is not one to be taken lightly. It requires a partner who understands both the profound physics at play and the practical realities of daily operation. At Timetric, our legacy is built on providing SF6 Circuit Breaker solutions that you can specify with absolute confidence. We do not just sell a product; we deliver peace of mind, backed by two decades of engineering excellence and a global support network.
Do not leave your critical infrastructure to chance. Contact us today to speak with one of our application engineers. Let us discuss your specific voltage, current, and environmental requirements to provide you with a detailed technical proposal and discover why our SF6 Circuit Breaker units are the trusted choice for utilities worldwide.
